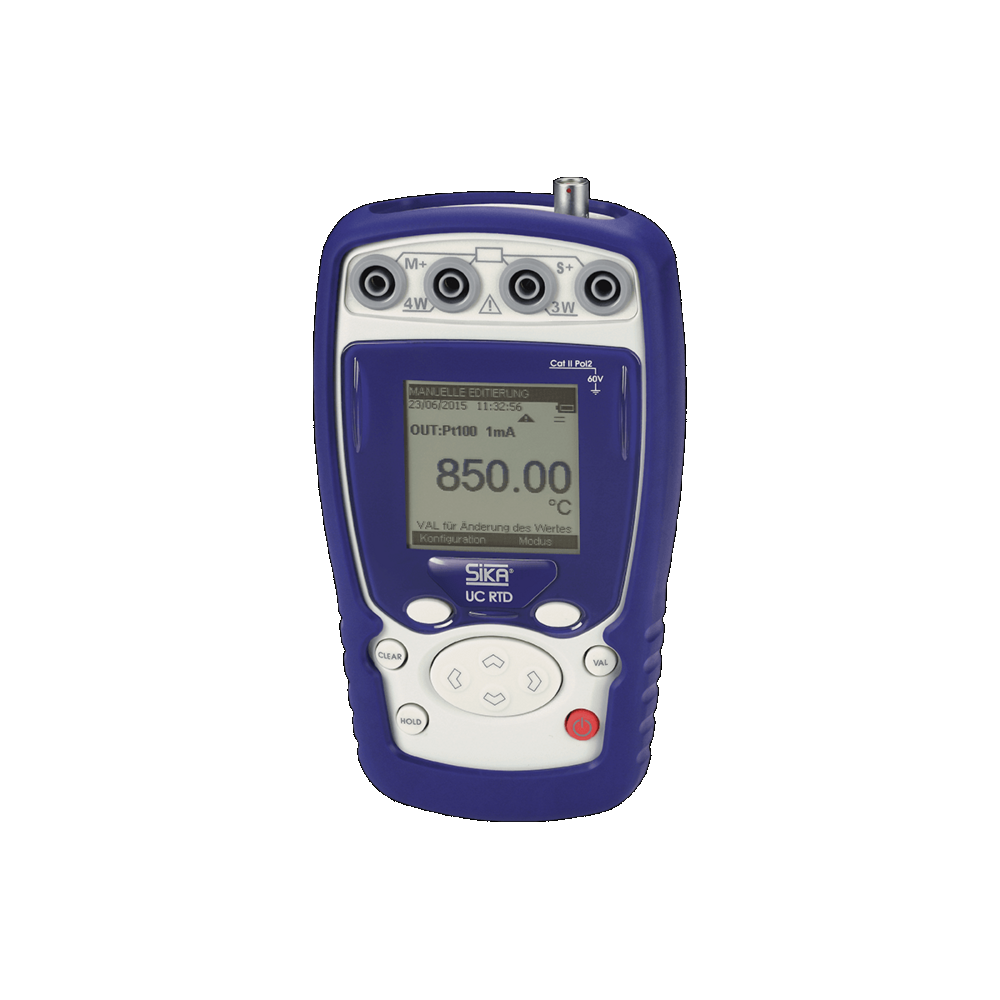

Sika UC RTD.2 Mono functions process calibrator

Resistance thermometers (RTD):

Generation and measurement of RTD signals : Pt50, Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Ni100, Ni120, Ni1000

Ω-generator function : 0...3500 Ω

Ω-measurement function : 0...3600 Ω

Accuracy (of reading + const.) : ±0.012 %

Selectable temperature unit : °C / °F

Measurement of multi-wire connections : 2/3/4

Generation:

High-speed call values : 10 points (flexible)

Linear steps and ramps : ✓

User-defined synthesiser values : 10

User-defined signal output characteristic : 10 points

Editable units : ✓

Measurement:

Data memory : 10 000 values

Value tables and graphics function : ✓

Offset programming for sensor characteristic : ✓

Calibration data files and linearisation points : 5 x 4 values

User-defined measuring input characteristic : 10 points

Editable units : ✓

Measured value min. / max.: ✓

Measured value hold function : ✓

Averaging function : ✓

General data:

Features:

Sensor connection : 4 safety sockets (1 channel) incl. 2 sets with safety instrument leads (4 mm) and alligator clips (optional)

Power supply : 4 x 1.5 V AA-battery, Operating time approx. 40 h or rechargeable battery including power adapter 230 VAC / 12 VDC (optional)

PC Interface : mini-USB Type B

Operator guidance : Menu with pull-down windows, programming and control via PC

Display : Multifunction display, LCD, 6 digit

Housing:

Version : ABS plastic with protective cover

Dimensions : 160 x 85 x 45 mm (H x W x D)

Weight : Approx. 300 g
