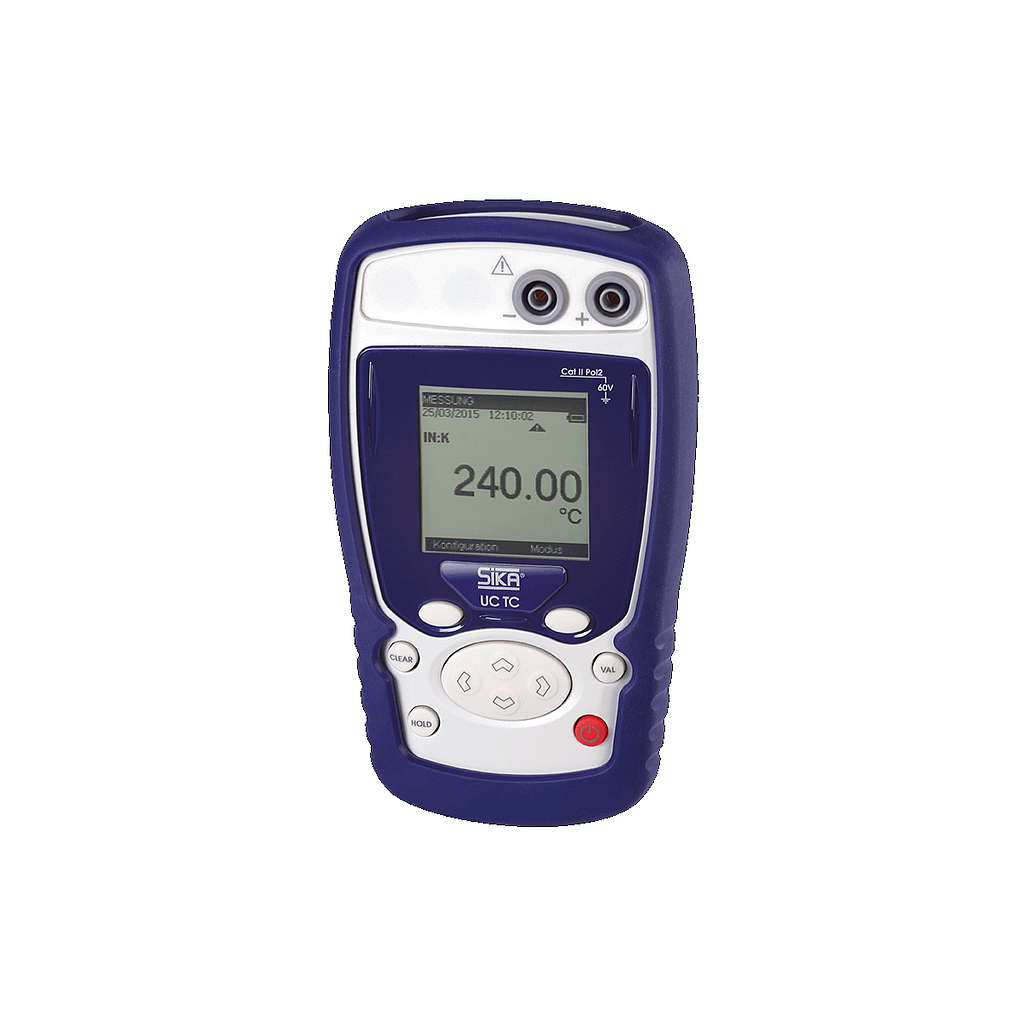

Sika UC TC.2 Mono functions process calibrator (±0.02 %)

Thermoelemente (TC):

Generation and measurement of TC signals : J, K, T, R, S, B, N, E, U, L, C

mV-generator function : -9,5...80 mV

mV-measurement function: -10...100 mV

Accuracy (of reading + const.) : ±0.02 %

Selectable temperature unit : °C / °F

Internal comparison point : ±0.3 °C

Generation:

High-speed call values : 10 points (flexible)

Linear steps and ramps: ✓

User-defined synthesiser values : 10

User-defined signal output characteristic : 10 points

Editable units : ✓

Measurement:

Data memory : 10 000 values

Value tables and graphics function : ✓

Offset programming for sensor characteristic: ✓

Calibration data files and linearisation points: 5 x 4 values

User-defined measuring input characteristic : 10 points

Editable units : ✓

Measured value min. / max. : ✓

Measured value hold function : ✓

Averaging function : ✓

Features:

Sensor connection : 4 safety sockets (1 channel) incl. 2 sets with safety instrument leads (4 mm) and alligator clips (optional)

Power supply : 4 x 1.5 V AA-battery; Operating time approx. 40 h or rechargeable battery including power adapter 230 VAC / 12 VDC (optional)

PC Interface : mini-USB Type B

Operator guidance: Menu with pull-down windows, programming and control via PC

Display : Multifunction display LCD, 6 digit

Housing:

Version : ABS plastic with protective cover

Dimensions : 160 x 85 x 45 mm (H x W x D)

Weight : Approx. 300 g
