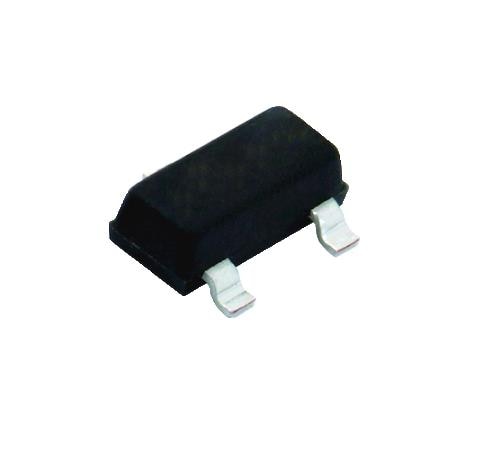

Vishay Siliconix SI2392BDS-T1-GE3 MOSFETs N-Channel 100-V (D-S) MOSFET SOT-23, 149 mohm a. 10V, 180 mohm a. 4.5V

Fall Time: 5 ns

Rise Time: 15 ns

Technology: Si

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Qg - Gate Charge: 4.7 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 1.7 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 15 ns

Typical Turn-Off Delay Time: 13 ns

Id - Continuous Drain Current: 2.3 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 12 S

Rds On - Drain-Source Resistance: 180 mOhms

Vds - Drain-Source Breakdown Voltage: 100 V

Vgs th - Gate-Source Threshold Voltage: 3 V
