Fall Time: 267 ns
Rise Time: 152 ns
Technology: Si
Channel Mode: Enhancement
REACH - SVHC: Details
Configuration: Single
Mounting Style: Through Hole

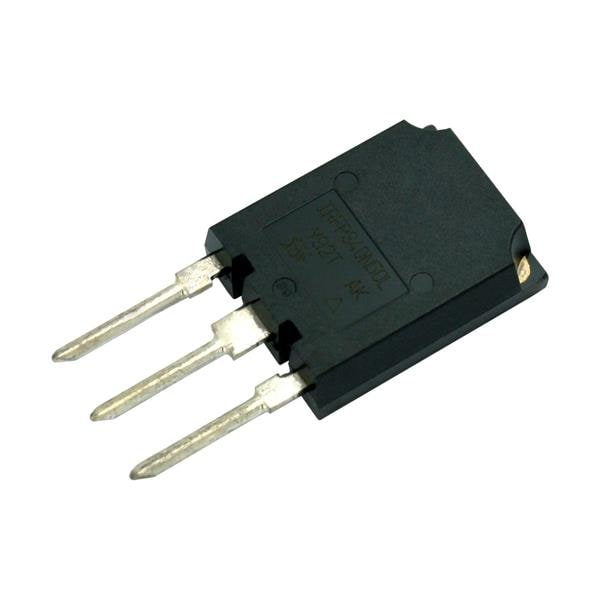

Transistor Type: E Series Power MOSFET
Qg - Gate Charge: 394 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 625 W
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Typical Turn-On Delay Time: 85 ns
Typical Turn-Off Delay Time: 323 ns
Id - Continuous Drain Current: 87 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 32 S
Rds On - Drain-Source Resistance: 29 mOhms
Vds - Drain-Source Breakdown Voltage: 650 V
Vgs th - Gate-Source Threshold Voltage: 4 V
