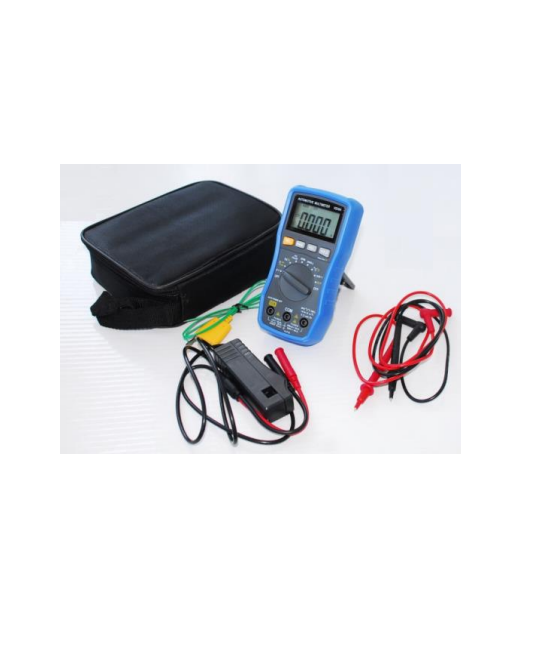

Silverado VS-39A Automotive Multimeter (600V (AC/DC))

Conforms to CAT III - Measurement Category III

Professional quality features help pinpoint engine problems

Ideal automotive measuring tool

Illuminated 3 5/6 digit display

Fuel injector pulse width testing

RPM measurements with included inductive pick-up

Suitable for 2 and 4-stroke engines

Auto-range, automatically selects the range size

Relative mode, enables differential measurement

Data hold function, freezes the measured value

Overload indication

Low battery indicator

Specifications:

Pulse width: 0.5ms ～ 20ms

Tach (rpm): 120 ～ 20,000 rpm

Dwell: (0-90 °) - (0-72 °) - (0-60 °) - (0-45 °)

DC voltage: 6~600V

AC voltage: 6~600V

DC current: 60 mA/600 mA /6A/10A

AC current: 60 mA/600 mA /6A/10A

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Capacity: 40nF/400nF/4μF/40μF/400μF/4000μF.

Temperature: -20 ℃ to 1000℃(-4ºF ～ 1832ºF)

Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz

Duty cycle: 0.5% ～ 99.9%

Continuity: buzzer sounds under 20Ω

Diode: test current approx. 0.8 mA
