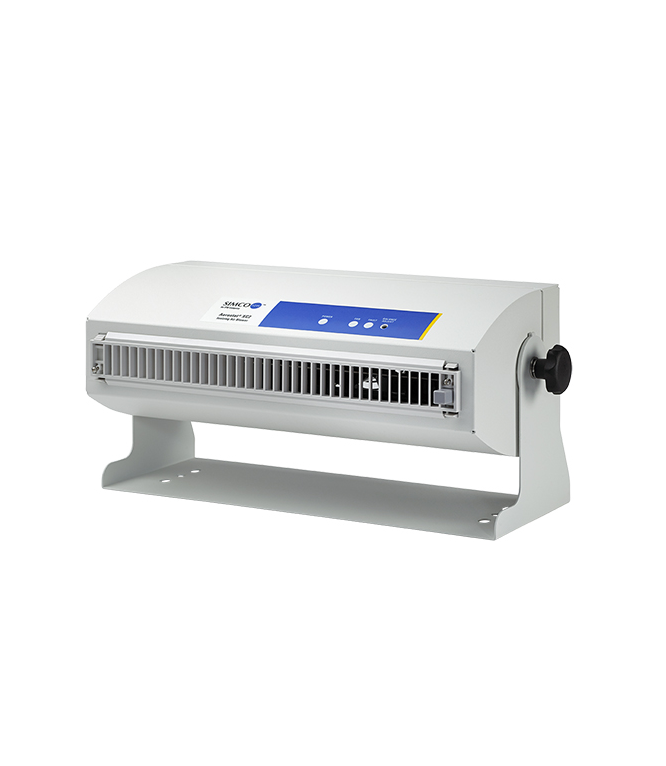

SIMCO Aerostat XC2 Extended Coverage Area Ionizing Blower

Input Voltage

100-240 VAC, 50/60 Hz, 0.5A, 55W max (without heater)

120V with Heater: 100-120 VAC, 3.5A, 420W

220V with Heater: 220-240 VAC, 1.9A, 460W

Discharge: 1.0 sec @ 12” (30.5 cm); 1000-100V fan high

Balance: 0 ±10V

Coverage: 36”W x 72”L (91.4 x 182.9 cm); effective coverage area is up to 72” from blower face

Ion Emission: Micropulse (μPulse) Technology

Emitter: Stainless Steel

Cleanroom Class ISO: 14644-1 Class 6 (heater off)

LED Indicator: Green POWER on, Red FAULT alarm, Red FAN STALL alarm

Control: Power ON/OFF, fan speed LOW/MEDIUM/HIGH, EMITTER POINT CLEANER push

button, balance adjust TRIMPOT, heater ON/OFF (optional)

Connector: FMS fault alarm output connector

Air Supply

Volume: 95 cfm (fan low), 150 cfm (fan high)

Speed: 620 fpm @ 12” (3.15m/s @ 30.5 cm), 435 fpm @ 24” (2.21m/s @ 61.0 cm),

325 fpm @ 36” (1.65 m/s @ 91.4 cm), 265 fpm @ 48” (1.35 m/s @ 122 cm) (fan high)

Heated Temp: 4-5°F (2-3°C) above ambient; measured 12” (30.5 cm) in front of blower (optional)

Audible Noise: 58 dB (fan low), 70 dB (fan high); measured 24” (61.0 cm) in front of blower

Audible Alarm: Fault and fan stall (optional)

Ozone: <0.05 ppm; measured 12” (30.5 cm) in front of blower

Operating Env: 50-95°F (10-35°C), 30-60% RH, non-condensing

Mounting: Powder-coated steel stand with skid resistant rubber feet

Enclosure: Powder-coated aluminum chassis

Dimension: 14.13”W x 7.19”H x 7.53”D (35.9 x 18.3 x 19.1 cm) with stand

Weight 7.0 lb (3.18 kg) with stand
