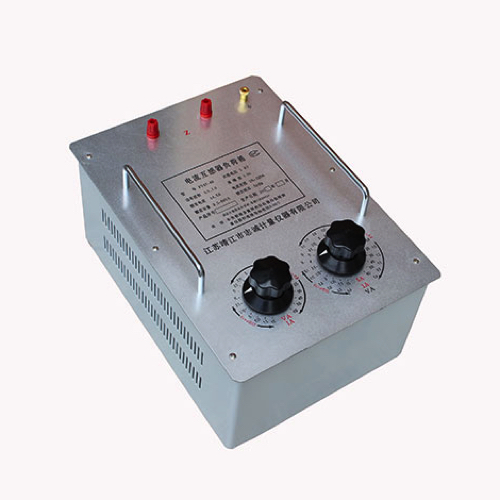

Sincere FY47 - 49 Current Transformer Burden (1A & 5A)

Rated Current: 1A & 5A

Power Factor and Rated Burden:

Standard No.:IEC60044 - 1

COSФ = 0.8: 2.5 / 3.75 / 5 / 6.25 / 7.5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 40 / 50 / 60VA

COSФ = 1.0: 2.5 / 3.75 / 5 / 6.25 / 7.5 / 10 va

Standard No.:ANSI / IEEE C57.13

COSФ = 0.5: 25VA, 50VA, 100VA, 200VA

COSФ = 0.9: 2.5VA, 5VA, 12.5VA , 22.5VA, 45VA

Accuracy Class: ±3%

Operation Range: (5%-120%) In

Frequency: 50Hz or 60Hz

Withstand Voltage: 2kV/1min

Insulation: Air

Operating Condition:

Temperature: 10 ℃ ～ +40 ℃

Relative Humidity (RH): up to 85% (max 90%)

Remark: The technical data in the above table is the normal value; we accept orders with special specifications from users.
