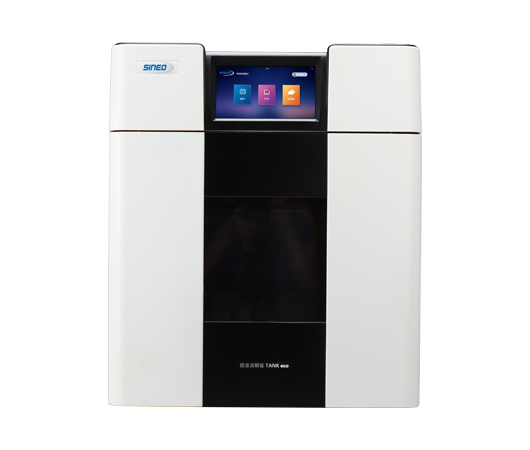

SINEO TANK eco Microwave Digestion/Extraction System

Power supply: 220~240VAC 50/60Hz 20A

Microwave source: 2450MHz, high-energy microwave field transmission

Installed power: 1800W

Maximum output power: 1000W

Microwave cavity: Large-volume 316L stainless steel cavity, internally and externally coated with multi-layer corrosion-resistant Teflon

Explosion-proof door design: Self-popping explosion-proof sliding furnace door, integrated structure design with prevention of microwave leakage

Pressure measurement system: High-precision semiconductor pressure sensor, with pressure control range: 0~15MPa, accuracy ±0.01MPa

Temperature measurement: Full vessel IR temperature control system, with temperature control range: -40~305°C, accuracy: ±0.1°C;

Control system: Optional multi-core integrated optical fiber temperature control system, with temperature control range: -40~305°C, accuracy: ±0.1°C

Passive protection system: COT real-time abnormality monitoring system, which can automatically beep and cut off the microwave when an abnormality occurs to any reaction vessel; Safety Bolt design, providing vertical and quantitative release of overpressure

Software system: Android system; Built-in method library; Cloud methods, data storage and sharing; Wi-Fi remote connection, etc.

Communication interface: USB interface and internet interface

Exhaust system: High-power corrosion-resistant turbo fan, high-efficiency turbulent air cooling, less than 15 minutes cooling down to room temperature

Working environment: 0~40°C / 15~80%RH

Physical size / net weight: 480mm×560mm×575mm (Width × depth × height) /45kg
