Test force value range: 0-2000kg (can be specified)
Strength measurement display accuracy: 0.001Kg
Unit switching: gf, kgf, N, KN, lbf
Degree of resolution: 1/50000
Load accuracy: ±0.5%
Force amplification: stepless speed regulation
Displacement resolution: 1/1000
Test speed: 10±3mm (fixed speed, adjustable speed 10-100mm/min)
Test space: 1000×1000×1000mm
Working power supply: 220V/50HZ
Power: 2.0KW
Overall machine weight: about 1500kg
Product information:

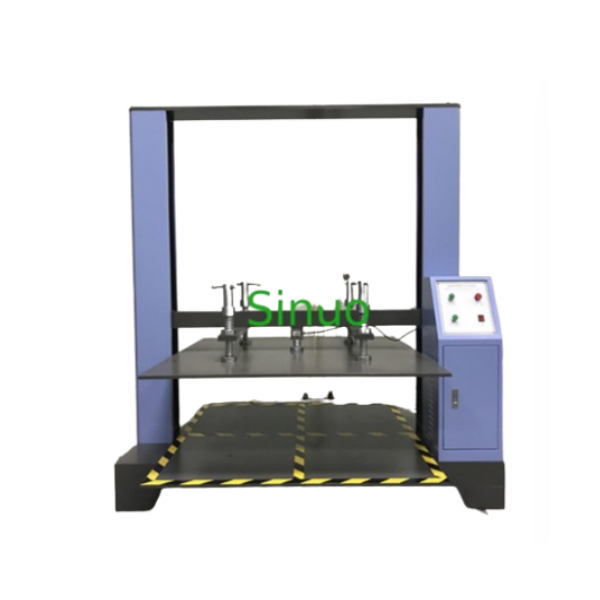

The original purpose of this machine is to test the compressive strength of products, in order to prevent product deformation and damage caused by insufficient strength during handling, stacking, storage, and transportation. It is the most direct testing instrument for testing the compressive strength of carton packaging, plastic packaging containers, etc. It is used to determine the load-bearing and stacking height of the product.
Test standards are based on: GB/T1019 "General Principles for Packaging of Household Appliances", GB/T4857.3 "Static Load Stacking Test Method for Packaging and Transportation Packages", which can implement national or international standards such as GB, ISO, ASTM, BS, DIN, JIS and so on.
Control software introduction:
◆ Software operating system language: Simplified Chinese.
◆ Force units: N, KN, Kgf, Lbf
◆ Length unit: mm, cm, inch can be freely converted
◆ Control method: computer software sets speed, sets load rupture (rupture), running time and other control methods
◆ Curve types: load-displacement, load-time, displacement-time.
Stress-strain, strain-time, stress-time.
The vertical and horizontal coordinates of the curve can be set arbitrarily.
Technical Parameters:
1. Test force value range: 0-2000kg (can be specified)
2. Strength measurement display accuracy: 0.001Kg
3. Unit switching: gf, kgf, N, KN, lbf
4. Degree of resolution: 1/50000
5. Load accuracy: ±0.5%
6. Force amplification: stepless speed regulation
7. Displacement resolution: 1/1000
8. Test speed: 10±3mm (fixed speed, adjustable speed 10-100mm/min)
9. Test space: 1000×1000×1000mm (can be specified)
10. Test function: ① Anti-pressure function
② Pressure holding function (time can be adjusted from 0 to 9999H)
11. Operation method: computer control, using Windows working platform, clear-level operation method and detailed help documents and prompts, making it the simplest and easiest-to-use software in the testing machine industry.
12. Using multi-thread parallel processing technology, force-displacement, force-time, displacement-time, stress-strain and other curves are simultaneously displayed in real time during the test process. You can switch to the curve screen you want to see at will, and view user settings, etc. The industry's innovative Microsoft Word report format is simple and easy to use. As long as you know how to use Word, you can edit the beautiful reports you want.
13. Power system: servo motor drive, gapless precision ball screw, turbine reducer
14. Structural material: Comprehensive structure using 45# steel, A3 steel, cold-rolled steel, and chromium steel
15. Protection devices: upper and lower limit protection, overload protection, overvoltage protection, leakage protection
16. You can plan your own test report mode and use translation, comparison and other methods to compare data of multiple curves at the same time;
17. Working power supply: 220V/50HZ
18. Power: 2.0KW
19. Overall machine weight: about 1500kg
★Outstanding features of the software
1. Support Chinese and English language interface switching;
2. Support functional navigation, users can enter the corresponding test function module according to the navigation interface;
3. Support various metal material mechanical property tests, such as metal tension, compression, bending, shear and other tests;
4. Support mechanical property tests of various non-metallic materials, such as cement compression and bending resistance, concrete compression resistance, rigid foam plastic compression, etc.;
5. Supports extended test functions, users can add test projects by themselves;
6. The independent open test project setting module allows technical personnel to establish test projects, and test operators can use the test projects to conduct tests, which greatly reduces the business level requirements and operational difficulty of the majority of test operators;
7. Test control process design, users can see the test control steps clearly at a glance, and the instruction types are rich;
8. The test data name can be modified and the test data display order can be adjusted to meet the user's special data output requirements;
9. Support custom addition of test data items;
10. Support custom additional test standards and test data processing;
11. Support statistical calculation of test data (mean, standard deviation, coefficient of variation);
12. Support curve analysis;
13. Support trial traceability;
14. Supports customized test reports, using Word or Excel spreadsheet format, easy to operate, simple to set up, and can be printed or previewed;
15. The software has various equipment security and test security protections;
16. Extensive software help documentation.
