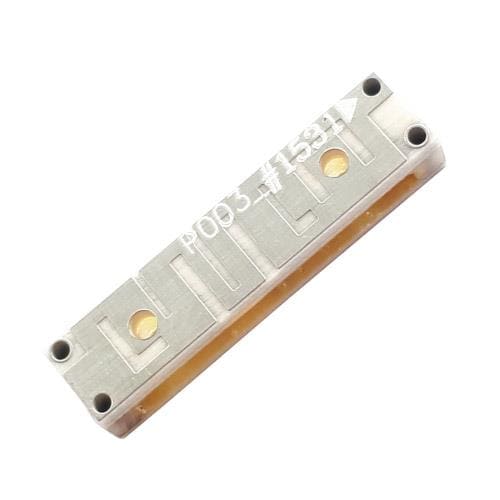

Siretta ECHO12/x/x/S/S/3 PCB Antennas GSM/GPRS/3G penta band PIFA embedded antenna (ANTH6000J0100AB3)

Gain: 0.67 dBi, 1.56 dBi, 5.25 dBi, 5 dBi, 5.52 dBi

VSWR: 3

Style: Ceramic

Width: 5.5 mm

Height: 4.4 mm

Length: 24 mm

Frequency: 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1.71 GHz to 1.88 GHz, 1.85 GHz to 1.99 GHz, 1.92 GHz to 2.17 GHz

Impedance: 50 Ohms

Application: GSM, GPRS, 3G

Polarization: Linear

Mounting Style: PCB Mount

Frequency Range: 824 MHz to 2.17 GHz

Number of Bands: 5 Band

Mechanical Style: Chip

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: SMD/SMT

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 35 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
