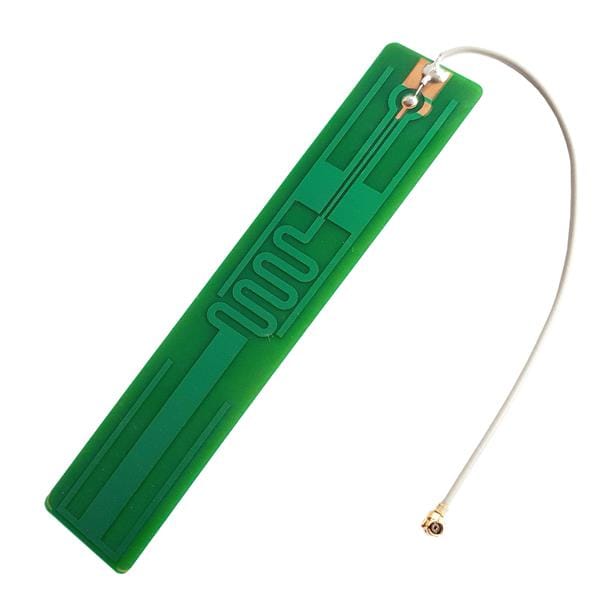

Siretta ECHO14/0.1M/UFL/S/S/15 PCB Antennas 5G/4G/DUAL BAND WI-FI COMPACT PCB EMBEDDED ANTENNA 100MM CABLE AND U.FL CONNECTOR

Gain: 2.79 dBi, 2.84 dBi, 2.44 dBi

VSWR: 1.8:1

Width: 20 mm

Height: 1 mm

Length: 105 mm

Frequency: 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz to 2500 MHz, 2500 MHz to 2700 MHz, 3300 MHz to 3600 MHz

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Application: 2 G/3G/4G, GSM, GPRS

Cable Length: 100 mm

Polarization: Vertical

REACH - SVHC: Details

Mounting Style: PCB Mount

Frequency Range: 800 MHz to 3.6 GHz

Number of Bands: 4 Band

Maximum Frequency: 3.6 GHz

Minimum Frequency: 800 MHz

Termination Style: U.FL

Antenna Connector Type: U.FL

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
