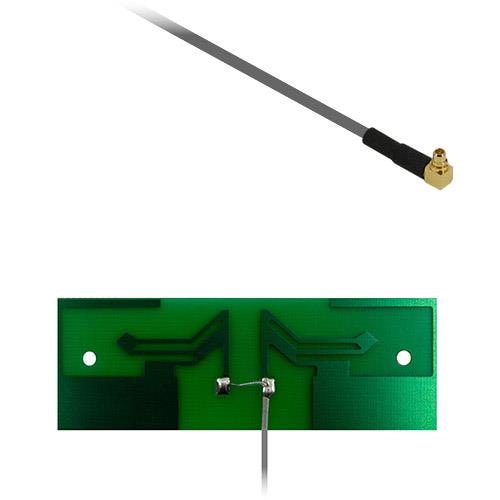

Siretta ECHO2/0.2M/MMCXM/S/RA/1 PCB Antennas G75x25mm PCB antenna with 200mm cable and MMCX male right angle

Gain: 2 dBi

VSWR: 3

Style: Flexible

Width: 25 mm

Height: 1.7 mm

Length: 75 mm

Frequency: 850 MHz, 868 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 2.4 GHz

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: 2G/GPRS, 3G Plus, 4G LTE, WiFi + Bluetooth

Cable Length: 200 mm

Polarization: Vertical

Mounting Style: PCB Mount

Electrical Type: Dipole

Frequency Range: 800 MHz to 2.4 GHz

Number of Bands: 5 Band

Mechanical Style: PCB Trace

Maximum Frequency: 2.4 GHz

Minimum Frequency: 800 MHz

Termination Style: MMCX Male

Antenna Connector Type: MMCX Male

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
