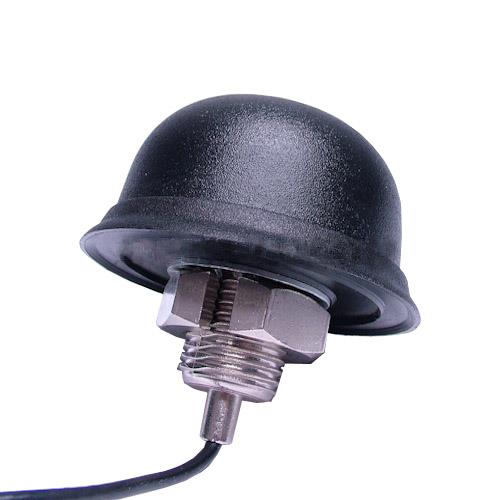

Siretta TANGO17/1M/LL/SMAM/S/S/26 Passive Antenna 5G/4G WEATHER RESISTANT PANEL MOUNT ANTENNA SMA MALE 1M LOW LOSS LMR100 CABLE

Gain: 2 dBi

VSWR: 2

Style: Dome

Length: 35 mm

Diameter: 68 mm

Frequency: 824 MHz to 960 MHz, 1.71 GHz to 2.17 GHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1 M RG174

Application: Cellular Applications

Unit Weight: 90 g

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Frequency Range: 824 MHz to 2.17 GHz

Number of Bands: 2 Band

Center Frequency: 868 MHz, 915 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Mechanical Style: Module

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS
