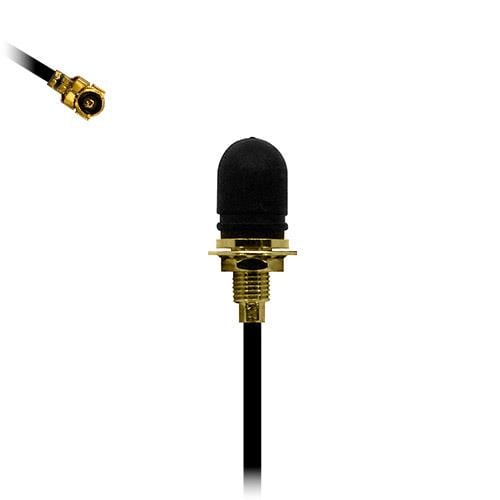

Gain: 0 dBi
VSWR: 1.7:1
Style: Stubby
Length: 18.3 mm
Diameter: 8.5 mm
Frequency: 2.4 GHz
Impedance: 50 Ohms
Cable Type: 100 mm RG174
Application: Wireless Applications
Unit Weight: 50 g
Cable Length: 100 mm
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Frequency Range: 2.4 GHz to 2.5 GHz
Number of Bands: 1 Band
Center Frequency: 2.45 GHz
Mechanical Style: Whip
Maximum Frequency: 2.5 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: IPEX
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 75 C
Minimum Operating Temperature: - 25 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
