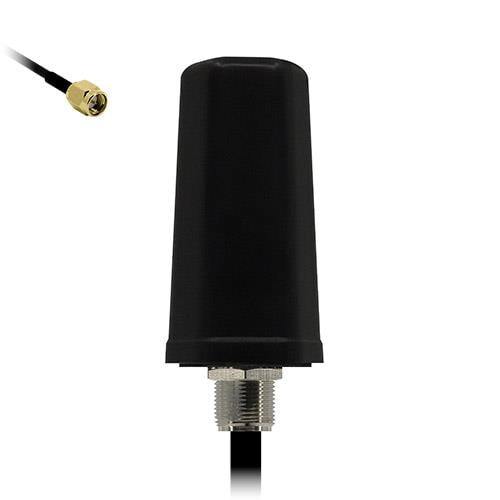

Siretta TANGO41/1M/SMAM/S/S/32 Passive Antenna 5G/4G/DUAL BAND WI-FI/LORA/SIGFOX PANEL MOUNT ANTENNA 1M CABLE SMA MALE CONNECTOR

Gain: 1 dBi, 3 dBi, 5 dBi

VSWR: 3

Style: Cone

Length: 77 mm

Diameter: 37 mm

Frequency: 698 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, 2.3 GHz to 2.7 GHz

Impedance: 50 Ohms

Cable Type: 1 M RG174

Application: Cellular Applications, Wireless Applications

Unit Weight: 170 g

Cable Length: 1 m

Polarization: Vertical

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Number of Bands: 3 Band

Center Frequency: 700 MHz, 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz, 2500 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
