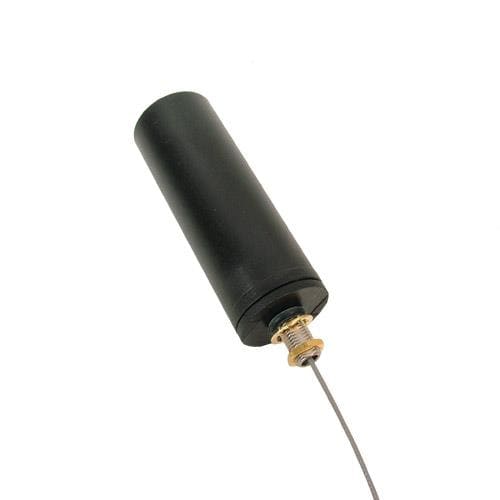

Siretta TANGO45/0.1M/IPEX/S/S/29 Outdoor Antennas 4G / 3G MINIATURE BOLT THROUGH ANTENNA WITH 100MM CABLE AND IPEX CONNECTOR

Gain: 2 dBi, 2 dBi, 4 dBi

VSWR: 3.5

Style: Bolt Through

Width: 23 mm

Length: 60 mm

Frequency: 734 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, 2.3 GHz to 2.7 GHz

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Application: 3G/4G WiFi

Cable Length: 100 mm

Polarization: Vertical

Power Rating: 1 W

Mounting Style: Screw Mount

Frequency Range: 734 MHz to 2.7 GHz

Number of Bands: 3 Band

Maximum Frequency: 2.7 GHz

Minimum Frequency: 734 MHz

Termination Style: IPEX

Antenna Connector Type: IPEX

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G
