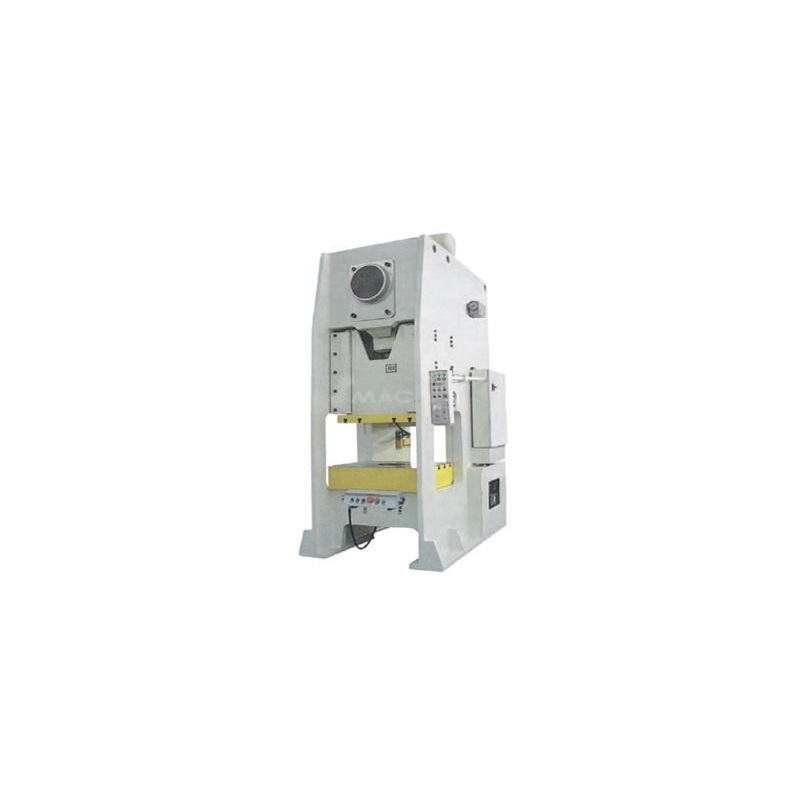

SMAC PSD-63 D-Frame Single Point Press
Nominal Pressure (kN): 630
Nominal Pressure Stroke (mm): 4
Stroke of Slide (mm): 120
Strokes (S.P.M): 50-80
Max. Die Set Height (mm): 300
Die Height Adjustment (mm): 80
Dimension of Side-Hole (F-B) (mm): 520
Size of Table
L-R (mm): 850
F-B (mm): 500
Thickness (mm): 90
Bottom Size of Slide
L-R (mm): 600
F-B (mm): 350
Hole for Punch Shank
Diameter (mm): F50
Depth (mm): 60
Variable Motor Power (kW): 7.5
Overall Dimensions
F-B (mm): 1800
L-R (mm): 1245
Height (mm): 2870
Total Weight (kg): 6200
