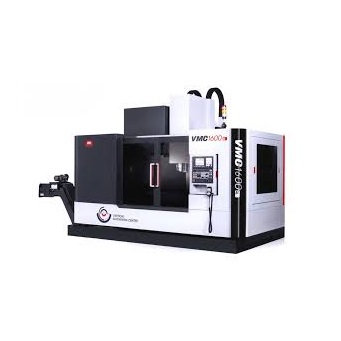

SMAC VMC1600B Vertical Machine Centre

Worktable

Dimensions (mm): 1700x800

T-slot Sizes (mmxN): 22x5

Max Load (kg): 2000

Machine range

X Axis Travel (mm): 1600

Y Axis Travel (mm): 800

Z Axis Travel (mm): 800

Max distance from Spindle Nose to Worktable (mm): 940

Min distance from Spindle Nose to Worktable (mm): 140

Spindle

Taper: BT50

Speed (rpm): 6000

Main Motor Torque (Nm): 95.4

Main Motor Power (kW): 15/18.5

Feed

X/Y/Z Axis Rapid Traverse (m/min): 24/24/20

Feed Speed (m/min): 10

Tool Magazine

Type: mechanical arm

Stations (number): 20

Changing Time (s): 3.5

Positioning Accuracy

JISB6300 (mm): ±0.005/300

JB/T8771.4 (mm): 0.020/0.012/0.012

Repositioning Accuracy

JISB6300 (mm): ±0.003

JB/T8771.4 (mm): 0.012/0.010/0.008

Gerneral Power Capacity (KVA): 37

Air-supply Pressura (Mpa): 0.5-0.7

Dimensions & Weight

Footprint (mm): 4212x3340

Height (mm): 3715

Weight (kg): 13500

CNC System: FANUC

Standard Accessories: Three-axis Ball Screw, 4linear guide rail X axis, linear guide rail Y axis, box guideway Z axis, Stainless-steel Guideway Protection, Full Enclosue, Water Tank Chip Conveyors, Lubricating System, Pneumatic System, Air Gun, Heat Exchanger, FANUC CNC System, SIEMENS CNC System, Ethenet, BT50 20T Mechanical Arm Tool Magazine, BT50 6,000RPM Spindle

Optional Accessories: Chain-type Chip Conveyors, Scraper-type Chip Conveyors, Magnetic Chip Conveyors, FIYANG CNC System, Thru-Spindle Coolant 20BAR, Reduction Gearbox, Renishaw NC4 Tool Detection, Renishaw TS27R Tool Detection, Marpross ML75P Tool Detection, Marpross TS30 Tool Detection, Renishaw OMP60 Workpiece Detection, Marpross E83Wa Workpiece Detection, Linear Scale, Hydraulic Monitor, Rotary Table, Air Conditioner, CE Standard, BT50 16T Umbrella Tool Magazine, BT40 10,000RPM Spindle
