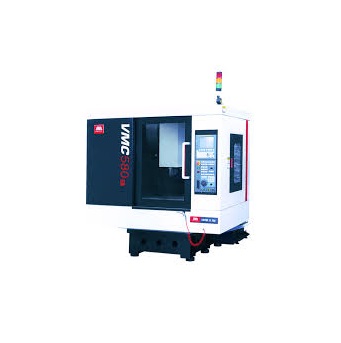

SMAC VMC580B Vertical Machine Centre

Worktable

Dimensions (mm): 650x430

T-slot Sizes (mmxN): 14x3

Max Load (kg): 300

Machine range

X Axis Travel (mm): 580

Y Axis Travel (mm): 420

Z Axis Travel (mm): 520

Max distance from Spindle Nose to Worktable (mm): 620

Min distance from Spindle Nose to Worktable (mm): 100

Spindle

Taper: BT40

Speed (rpm): 10000

Main Motor Torque (Nm): 35.8

Main Motor Power (kW): 7.5/11

Feed

X/Y/Z Axis Rapid Traverse (m/min): 48/48/48

Feed Speed (m/min): 20

Tool Magazine

Type: mechanical arm

Stations (number): 20

Changing Time (s): 1.8

Positioning Accuracy

JISB6300 (mm): ±0.005/300

JB/T8771.4 (mm): 0.012

Repositioning Accuracy

JISB6300 (mm): ±0.003

JB/T8771.4 (mm): 0.008

Gerneral Power Capacity (KVA): 18

Air-supply Pressura (Mpa): 0.5-0.7

Dimensions & Weight

Footprint (mm): 2510x1980

Height (mm): 2411

Weight (kg): 3500

CNC System: FANUC

Standard Accessories: Three-axis Ball Screw, linear guide rail X axis, linear guide rail Y axis, linear guide rail Z axis, Stainless-steel Guideway Protection, Full Enclosue, Water Tank Chip Conveyors, Lubricating System, Pneumatic System, Air Gun, Heat Exchanger, FANUC CNC System, SIEMENS CNC System, Ethenet, BT40 20T Mechanical Arm Tool Magazine, BT40 10,000RPM Spindle

Optional Accessories: Chain-type Chip Conveyors, Scraper-type Chip Conveyors, Magnetic Chip Conveyors, FIYANG CNC System, Renishaw NC4 Tool Detection, Renishaw TS27R Tool Detection, Marpross ML75P Tool Detection, Marpross TS30 Tool Detection, Renishaw OMP60 Workpiece Detection, Marpross E83Wa Workpiece Detection, Hydraulic Monitor, Rotary Table, Air Conditioner, CE Standard
