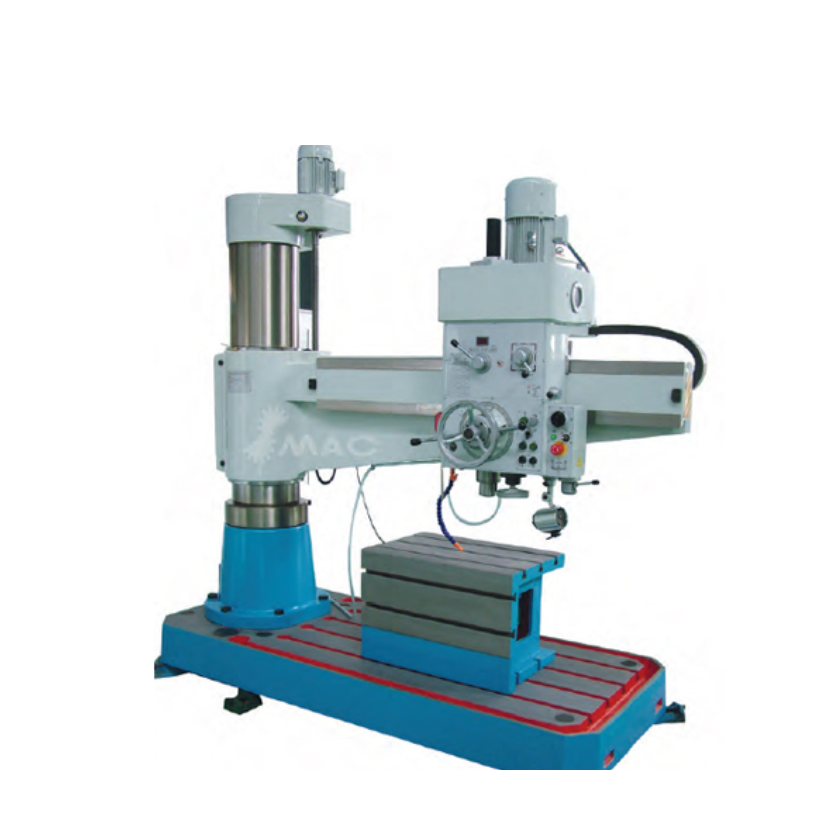

SMAC ZB3080x20 Frequency Conversion Radial Drilling Machine

Max.drilling diameter(on Medium-carbon steel)(mm): Ø80

Max.drilling diameter(on cast iron)(mm): Ø105

Max.tapping diameter(on Medium-carbon steel): M52

Max.tpping diameter(on cast iron): M60

Max.distance from spindle to generating line of colum(mm): 450-2050

Distance of horizontal movement for spindle box(manual)(mm): 1600

Max.distance between spindle endto the worktable surface of the base(mm): 400-1620

Max.travel of the spindle(mm): 400

Spindle taper bore: MT.6

Spindle speed step: Stepless

Spindle speed range(r/min): 30-220 / 192-1400

Spindle feed steps: 8

Spindle feed range(mm/r): 0.06, 0.09, 0.15, 0.23, 0.36, 0.60, 0.90, 1.38

Speed of rocker arm up and down movement(m/min): 1

Rotation angle of rocker arm.(degree): ±180

Distance of spindle movement for calibrated dial each revolution(mm): 151

Power of main motor(tranducer motor)(KW): 7.5

Power of motor for rocker arm up and down movement(KW): 2.2

Power of oil pump motor for spindle box,column and rocker arm clamping(KW): 1.1

Weight of machine(kg): 6800

Machine dimension(LxWxH)(mm): 3090x1250x3460
