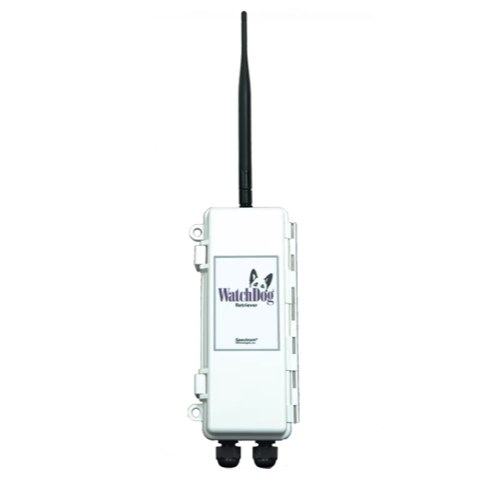

Spectrum Technologies 3912 WatchDog Retriever Logs Sensor Data (868 MHz)

Mounting Hardware: 1-1/4" u-bolt, aluminum bracket

Enclosure: 3.75" x 2" x 8" (9.5cm x 5.2cm x 20.2cm) IP65, UV resistant ABS plastic

Weight:

Non Solar: 1.6lb (0.7kg)

Solar: 5.5lb (2.5kg)

Power Options (Non-Solar): 6 x AA batteries, DC power port (maximum 17 VDC)

Power Options (Solar): 5W solar panel with rechargeable battery pack (4.5 Ah, 6U SLA)

Sensor/Station Pup Battery Life: 8 months (typical for 6 AA batteries)

Operating Temperature:

-22°F to 130°F (-30°C to 55°C) (with non-rechargeable AA batteries)

14°F to 130°F (-10°C to 55°C) (with rechargeable battery pack)

PC/Aux Port Baud Rate: 9600 bps (default, adjustable)

Frequency Bands: 868 MHz ISM Band:

Antenna: Reverse Polarity SMA

Range: 868 MHz: 2000' (~600m), line of sight

Output Power: 868 MHz: 14dBm (25mW) Transmitter power

The WatchDog Retriever logs sensor data from its network of WatchDog Pups (maximum of 12 Pups per network). Data can be transferred using a USB or Direct PC Connection. The internal flash memory on the Retriever will hold approximately 6 months of data. (868Mhz - International)
