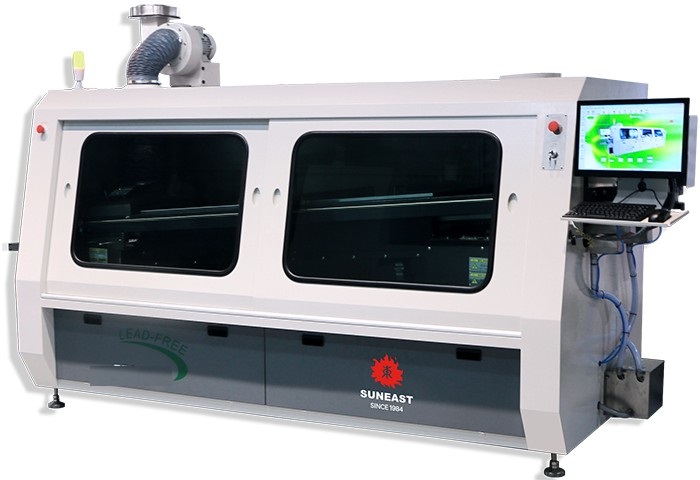

Suneast ETS-300E Small Wave Soldering (6.7KW)

Dimension：LxWxH(mm): 3385x1190x1540

Weigh: Approx.1100kg

Power Supply: 3PH 380V 50HZ

Startup Power: 27KW

Operation Powr Consumption: 6.7KW

Control System: PC+PLC

Spraying movement: Step motor

Spray Pressure: 0.2Mpa~0.4Mpa

Flux Flow Arrange: option

Auto Fill Flux: Standard

Exhaust: /

ExhaustDucting Diameter(mm): Φ250

Exhaust tan power: /

Preheating Mode: IR

Control Mode: PID

Preheating Zone Number: 2

Preheating Length(mm): 1500mm

Preheating Temperature: Room temperature~200℃

Warm-upTime(min): Approx.12min (seting：150℃)

PCB Width(mm): 50~300

Convoyor Direction: L→R (Option：R→L)

Conveyor Speed(mm/min): 500~1800

Conveyor Height(mm): 750±20

Available Component Heigh (mm): Top 120, Bottom 15

Conveyor Speed Control Mode: Frequency converter closed-loop stepless speed regulation

Fingers: 1.Heavy type double hook finger; 2.Light double hook finger (Option)

Conveyor Angle: 4~6°

Type of solder Pot: Motor drive

Solder Pot Material: Casting Iron

Wave Height Adjustment: Digital Control by PC

Cooling Method: /

Heater Power: 220V 9KW

Solder Pot Temperature: 300°C

Solder Pot Capacity: Approx.350KG

Wave Drive Power: 180W*2 3PH 220VAC

Solder Pot Warm-up Time: Approx.150min (setting：250℃)

Temperature Control Mode: PID

Finger Cleaning System: /
