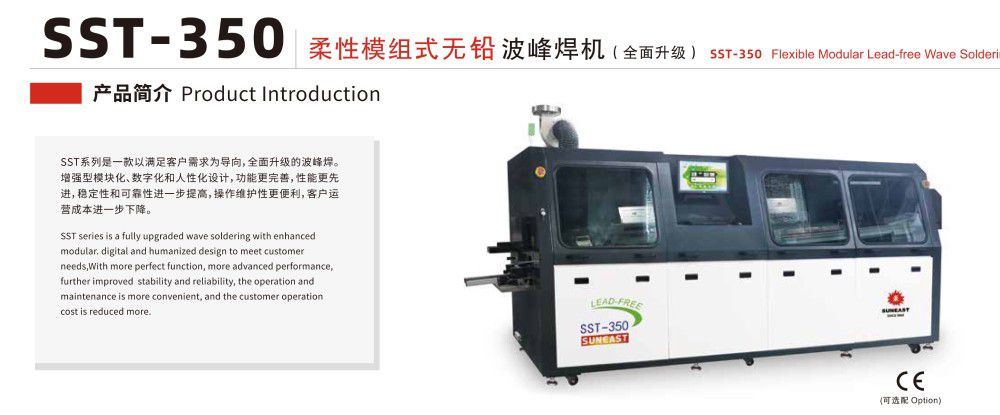

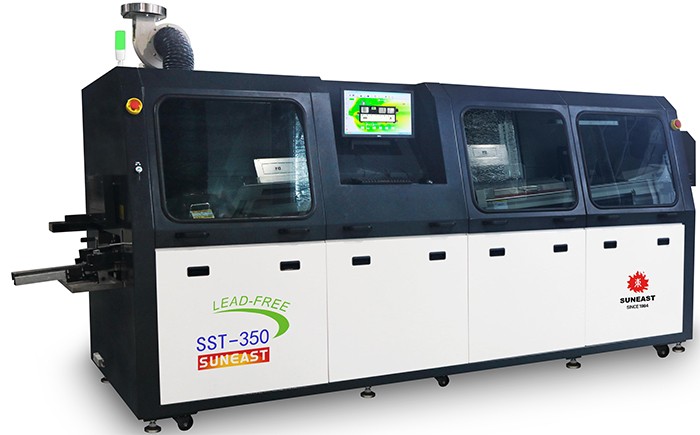

Suneast SST-350 Lead-free Wave Soldering

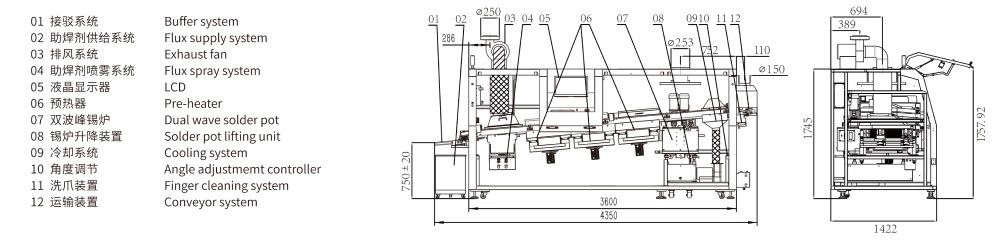

Dimension：LxWxH(mm)4350×1422×1750

Weigh:Approx.1600kg

Power Supply:3PH 380V 50HZ

Startup Power:33KW

Operation Power Consumption:8KW

Control System:PC+PLC

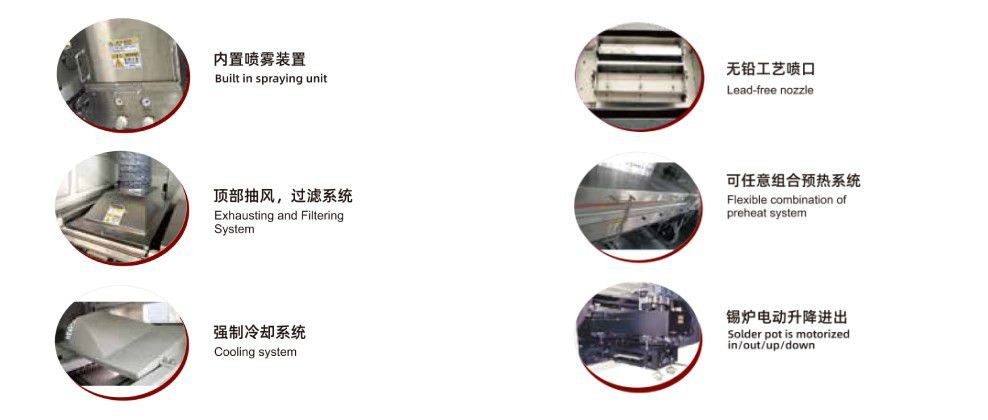

Spraying movement:Step motor

Spray Pressure:0.2Mpa~0.4Mpa

Flux Flow Arrange:option

Auto Fill Flux:Standards

Exhaust:Top exhaust

Exhaust Ducting Diameter(mm):Φ250

Exhaust fan power:750W

Preheating Mode:Convection / IR emitter

Control Mode;PID

Preheating Zone Number:3

Preheating Length(mm):1800

Preheating Temperature:Room temperature~200℃

Warm-upTime(min):Approx.12min (setting：150℃)

PCB Width(mm):50~350

Convoyor Direction:L→R (Option：R→L)

Conveyor Speed(mm/min):500~1800

Conveyor Height(mm):750±20

Available Component Heigh (mm):Top 120, Bottom15

Conveyor Speed Control Mode:Frequency converter closed-loop stepless speed regulation

Fingers:Spring tablet finger /D-40 duckbill finger/double hook finger/heavy double hook finger, choose one.

Conveyor Angle:4~7°

Type of solder Pot:Motor drive

Solder Pot Material:Casting Iron

Wave Height AdjustmentDigital: Control by PC

Cooling Method: Forced air cooling, Option: water cooler

Heater Power:13.5KW

Solder Pot Temperature:300°℃

Solder Pot Capacity:Approx.480KG

Wave Drive Power:180W*2 3PH 220VAC

Solder Pot Warm-up Time:Approx.150min(setting：250℃)

Temperature Control Mode:PID

Finger Cleaning System:Brush
