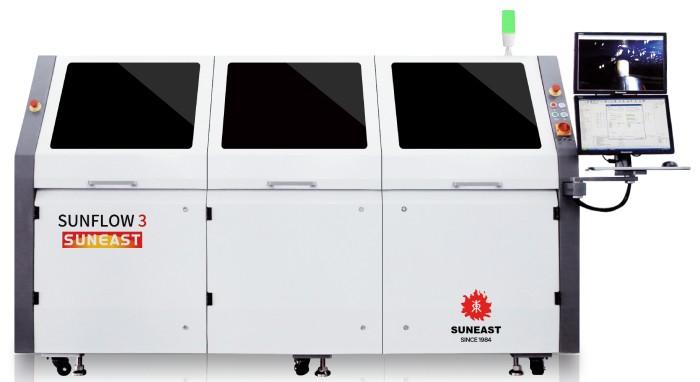

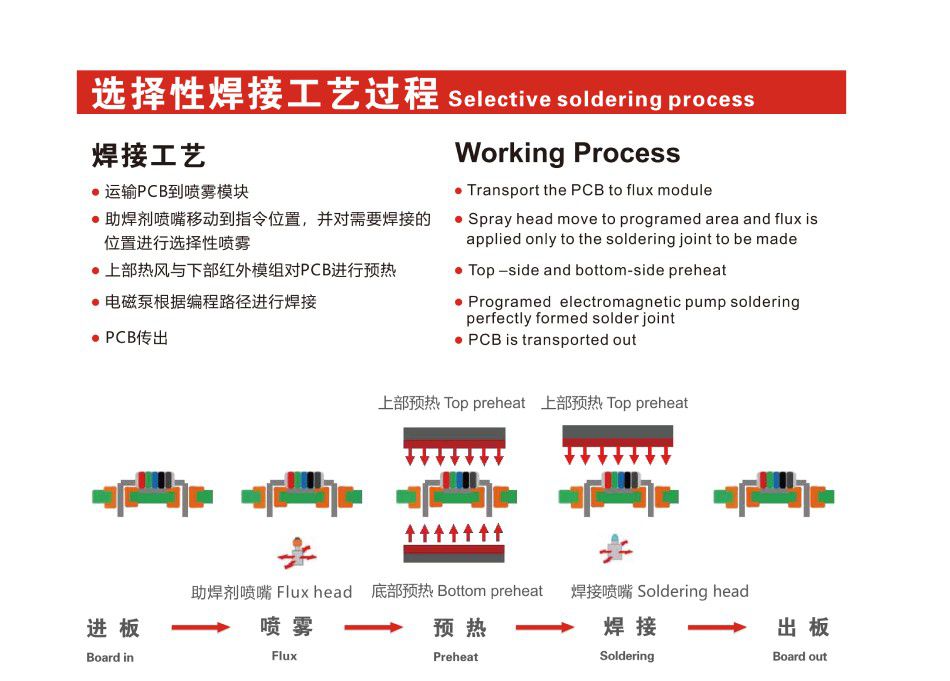

Suneast SUNFLOW 3 Selective Soldering

- General technical data:

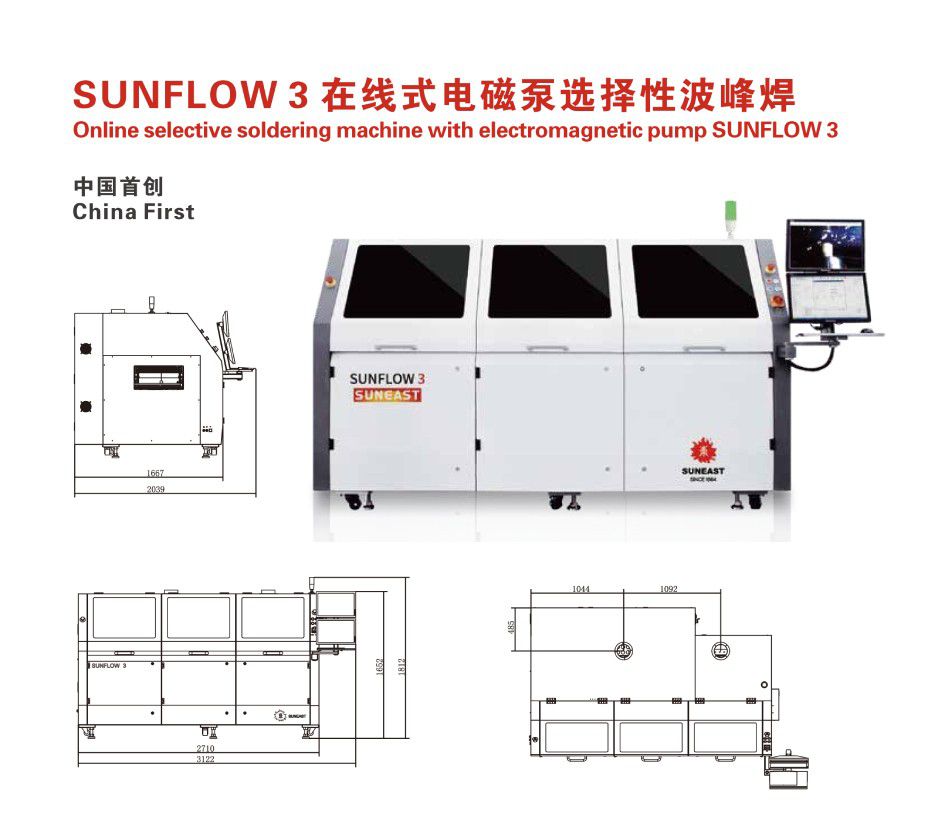

Overall dimension(mm) (Not include the keyboard, indicator light and monitor): 2710(L)*1670(W)*1630(H)

Equipment Weight(kg): Approx.2000

PCB size(mm): 510(L)*450(W)

Min PCB size(mm): 120(L)*50(W)

PCB Top Side Clearance (mm): 120

PCB Bottom Side Clearance (mm): 60

PCB process edge (mm): ≥3

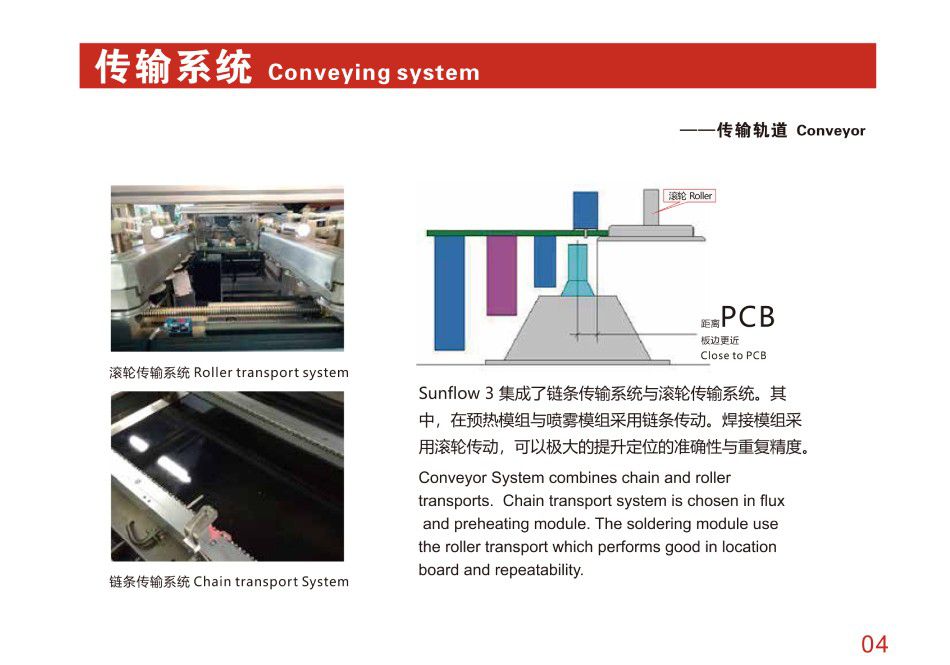

Conveyor Height From Floor (mm): 900±20

PCB Conveying Speed (mm/s): 0.2-10

Max PCB Weight (kg): ≤5

PCB Thickness With Jig (mm): 1-6

Conveyor Width Adjustment Range (mm): 50-450

Conveyor Width Adjustment Mode: Electric

PCB Conveying Direction: Left to right

Air Input Pressure (Mpa): 0.6

Nitrogen Supply: Offered by customer

Nitrogen Input Pressure (Mpa): 0.6

Nitrogen Consumption (m³/h): 1.5

Required Purity of Nitrogen (%): >99.999

Supply Voltage (VAC): 380

Frequency (HZ): 50/60

Max Power Consumption (kw): <28

Max Current (A): ≤56

Ambient Temperature (℃): 10-35

Machine Noise Leve (dB): <65

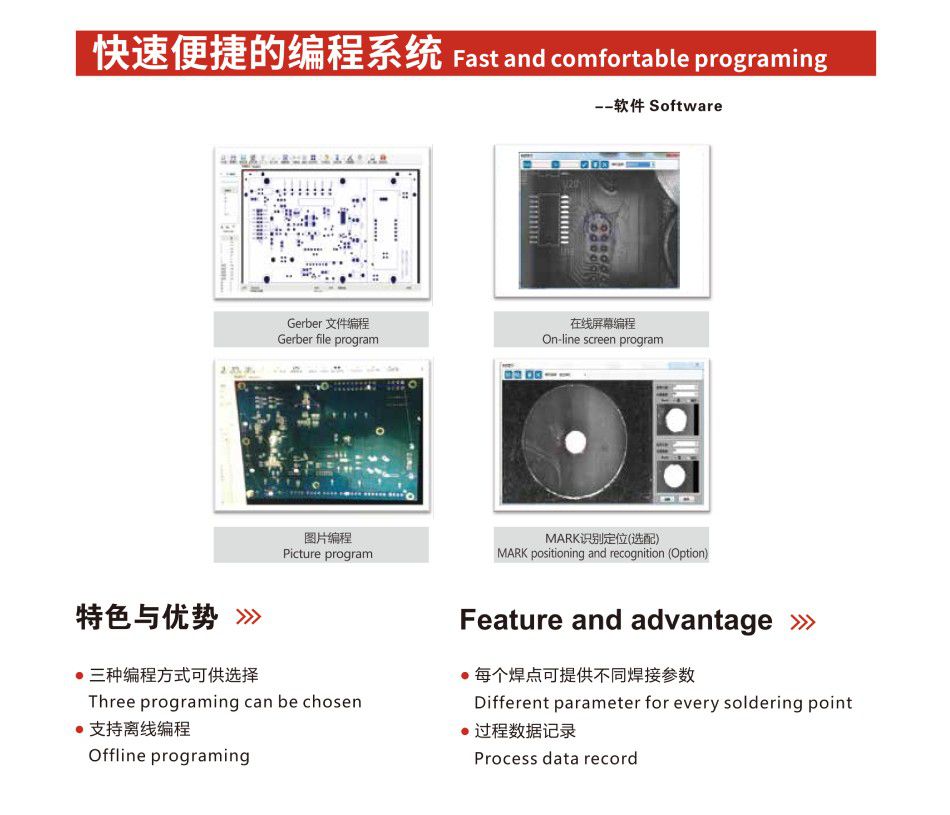

Communication Interface: SMEMA

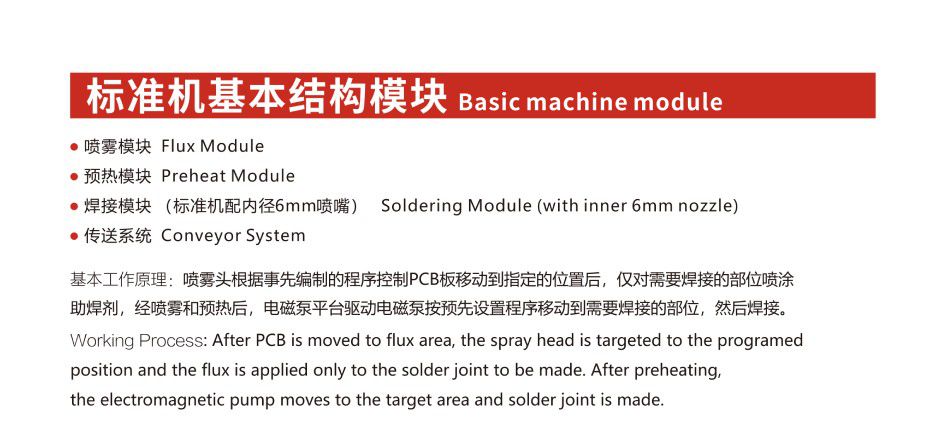

- Soldering module:

Max.Soldering distance of X axis(mm): 510

Max.Soldering distance of Y axis(mm): 450

Max.Soldering distance of Z axis(mm): 60

Min outer diameter of nozzle (mm): 5.5

Nozzle inner diameter (mm): 2.5-10

Max soldering wave height (mm): 5

Solder pot capacity(kg): Approx.13kg/ Approx.12kg(lead-free)

Max soldering temperature (℃): 330

Soldering heating power (kw): 1.15

- Preheating module:

Preheat temperature range(℃) : <200

Heating power (kw) : 24

Heating mode: Hot air+Infrared

Topside preheating: Hot air

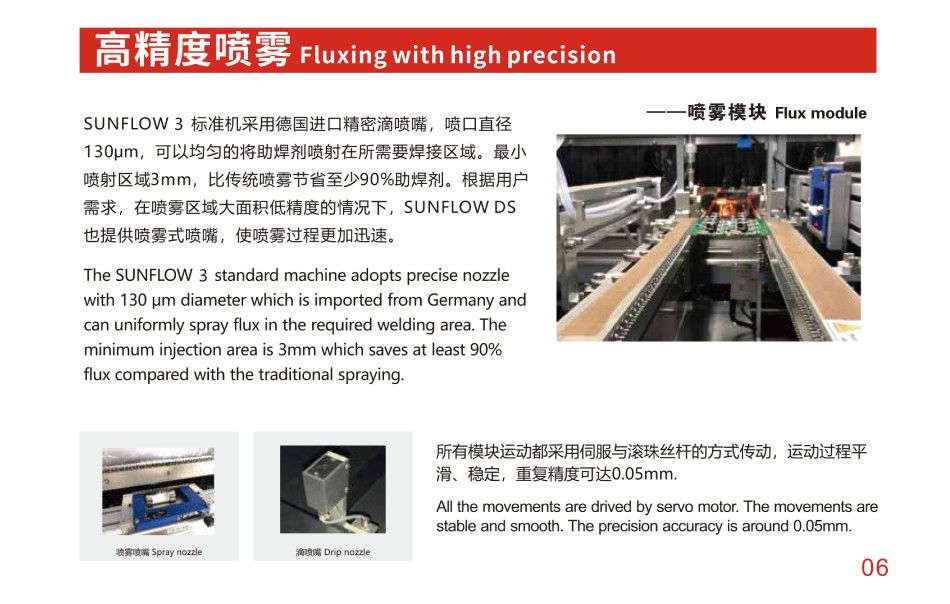

- Spraying System:

Max.stroke of X axis(mm): 510

Max.stroke of Y axis (mm) : 450

Spray height(mm): 60

Location speed (mm/s): <400

Spray head automatically cleaning: Program control

Fluxbox capacity (L): 2
