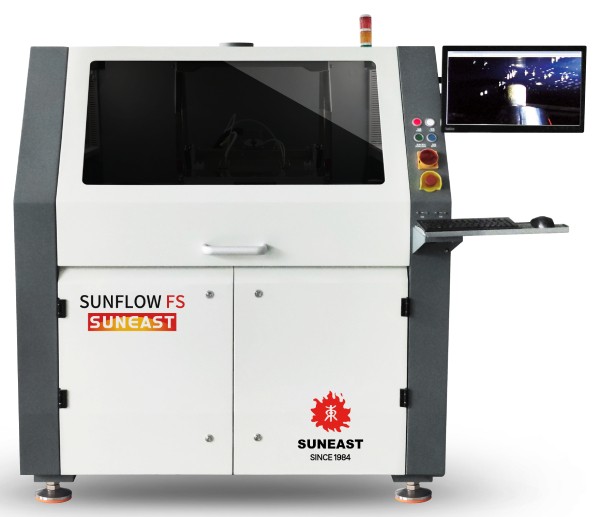

- General technical data:

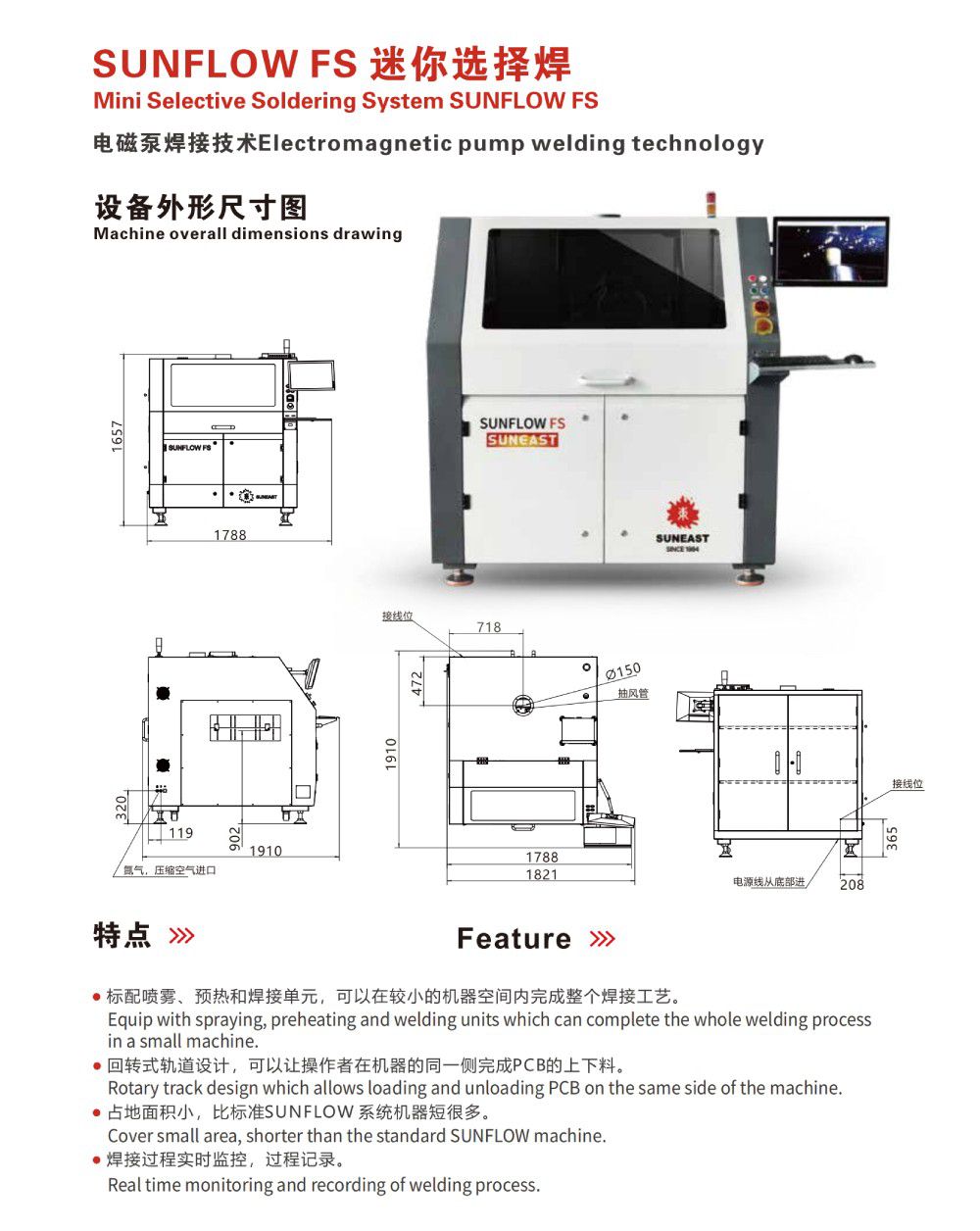

Overall dimension(mm) (Not include the keyboard, indicator light and monitor): 1435(L)*1800(W)*1670(H)
Equipment Weight(kg): Approx.1050
PCB Top Side Clearance (mm): 120
PCB Bottom Side Clearance (mm): 60
PCB process edge (mm): ≥3

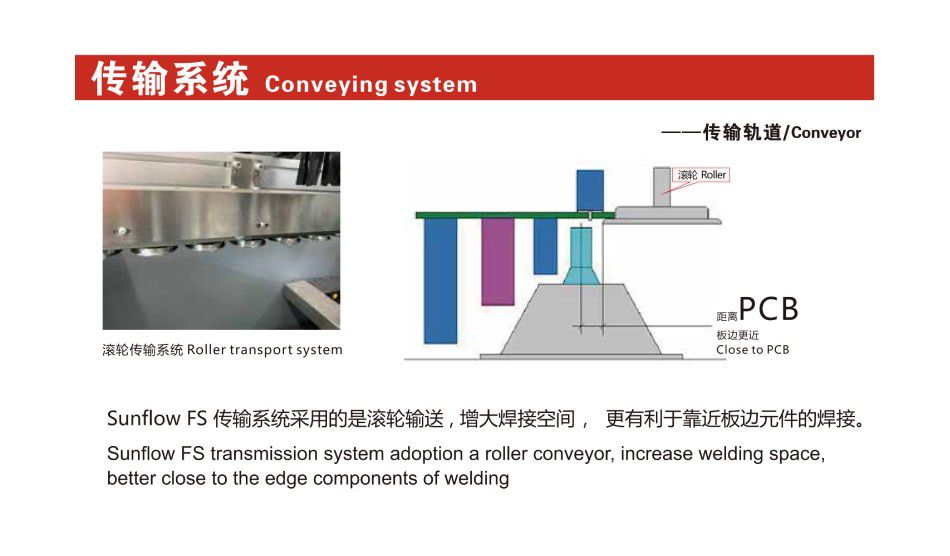

Conveyor Height From Floor (mm): 900±20
PCB Conveying Speed (mm/s): 0.2-10
Max PCB Weight (kg): ≤5
PCB Thickness With Jig (mm): 1-6
Conveyor Width Adjustment Range (mm): 50-450
Conveyor Width Adjustment Mode: Electric
PCB Conveying Direction: Left to right
Air Input Pressure (Mpa): 0.6
Nitrogen Supply: Offered by customer
Nitrogen Input Pressure (Mpa): 0.6
Nitrogen Consumption (m³/h): 1.5
Required Purity of Nitrogen (%): ≥99.999
Supply Voltage (VAC): 380
Frequency (HZ): 50/60
Max Power Consumption (kw): <12
Max Current (A): <25
Ambient Temperature (℃): 10-35
Machine Noise Leve (dB): <65
Communication Interface: SMEMA

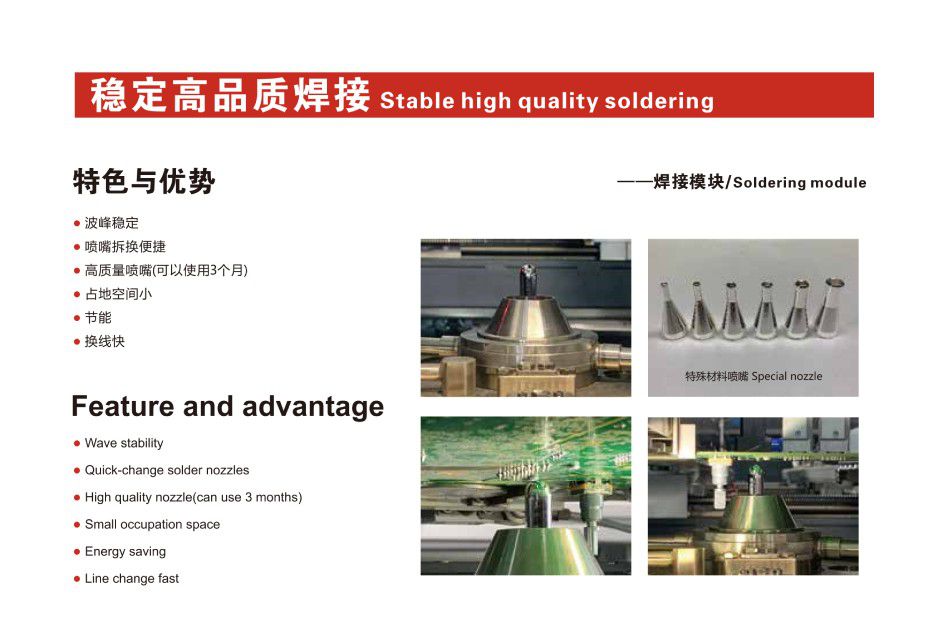

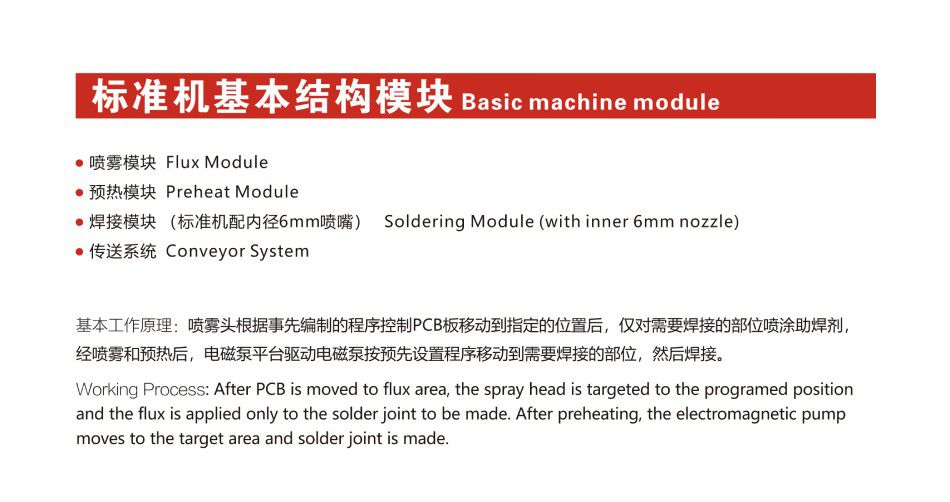

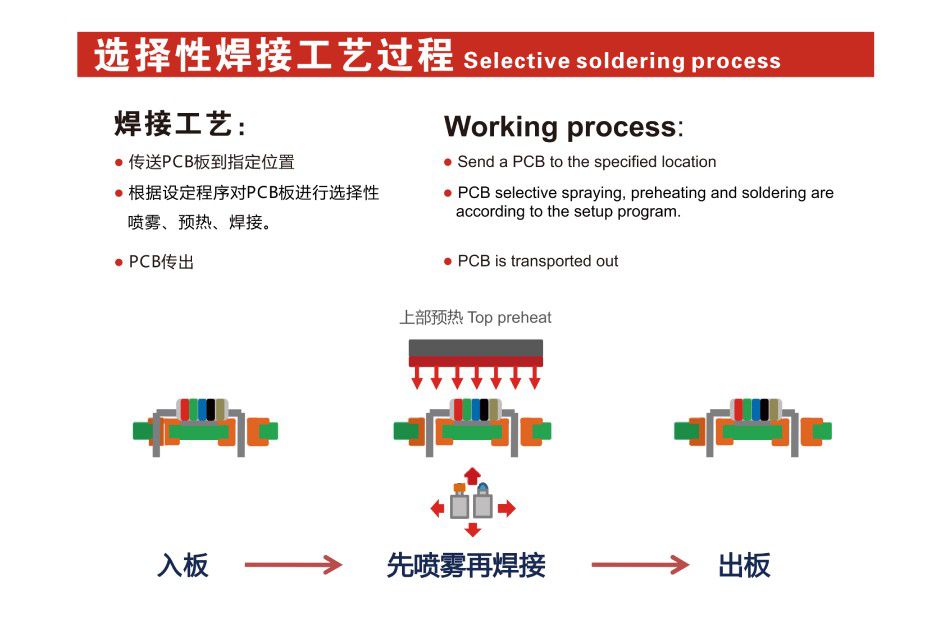

- Soldering module:
Max.Soldering distance of X axis(mm): 510
Max.Soldering distance of Y axis(mm): 450
Max.Soldering distance of Z axis(mm): 60
Min outer diameter of nozzle (mm): 5.5
Nozzle inner diameter (mm): 2.5-10
Max soldering wave height (mm): 5
Solder pot capacity(kg): Approx.13kg/ Approx.12kg(lead-free)
Max soldering temperature (℃): 330
Soldering heating power (kw): 1.15
- Preheating module:
Preheat temperature range(℃) : <200
Heating power (kw) : 6
Topside preheating: Hot air

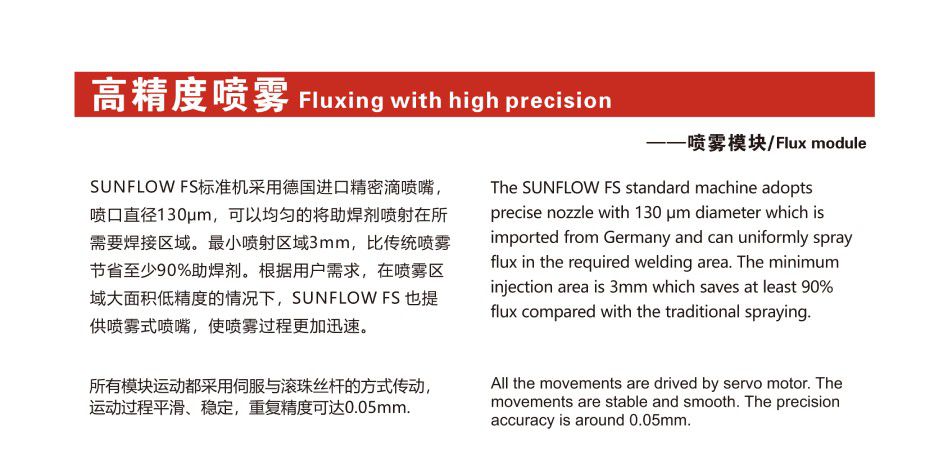

- Spraying System:
Max.stroke of X axis(mm): 510
Max.stroke of Y axis (mm) : 450
Spray height(mm): 60
Location speed (mm/s): <200
Fluxbox capacity (L): 2
