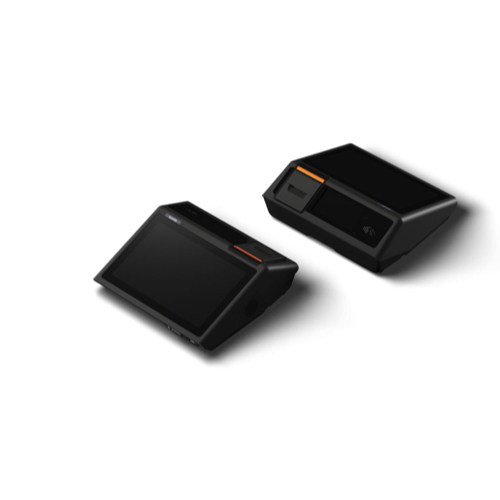

Sunmi D2 MINI Desktop POS (Quad-core Processor)

Processor: Quad-core Processor

Memory: 8GB ROM + 2GB RAM

Operating System: Android 8.1 SUNMI OS

Main Display: 10.1 inch HD, 1280×800, 300nit; 10-point capacitive touch screen

Secondary Display: Customer display: 4.3 inch WVGA, 800×480, 300nit

Scanner:  85 / 5000 QR Code, Accuracy >10mil. Speed: <0.05s, 30fps (Optional)

Power Supply: Input: AC100240V/1.7A, Output: DC24V/1.5A (Scanner version). Input: AC100240V/1.7A, Output: DC24V/2.5A (Printer version)

Speaker: 1×3W, 4Ω

Connectivity: Wi-Fi 2.4GHz, Supports IEEE 802.11 b/g/n, Supports BT 2.1/3.0/4.2, Supports BLE, 2G&3G&4G (Optional)

Button: 1× Power button (screen lock)

Printer: Built-in 58mm thermal printer. Print speed: 160 mm/s. Print life: 50 km. Supports up to 60mm OD roll. Manual paper tear

SIM Slot: Supports Mini SIM (2FF) Card

TF Card: Supports MicroSD up to 64GB

Peripheral Ports: 5× USB Type-A ports, 1× RJ11 Serial port, 1× RJ12 Cash drawer port, 1× RJ45 LAN port, 1× Audio jack, 1× Power port, 1× Micro USB debug port

Operating Temperature: 0 ~ 40°C

Storage Temperature: -20°C ~ 60°C

Dimensions (L × W × H): 60 × 290 × 99 mm

Weight: Scanner version: 1.81 kg. Printer version: 1.94 kg

NFC: Supports ISO14443 A, ISO14443 B, ISO15693, MIFARE 1K/4K

Datasheet
