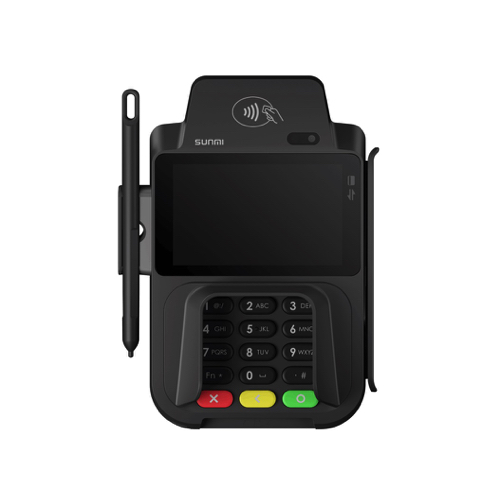

Sunmi P2 SMARTPAD POS IDS Kiosk (Cortex-A53, quad-core 1.3GHz)

CPU: Cortex-A53, quad-core 1.3GHz

Operating System: SUNMI OS (based on Android 9.0)

Memory/Storage: 1GB RAM+8GB Flash; 2GB RAM+16GB Flash (optional)

Display: 4-inch color display, WVGA (480*800), capacitive multi-touch

Camera: Front: 0.3MP, Fixed Focus (FF), supports 1D/2D barcode scanning 1D/2D. 5MP, FF (optional). supports image capture

Power: Input: AC 100~240V. Output: DC 12V/1A PoE, Powered USB, Powered RS232 supported

Speaker: 1 x 1W

Microphone: 1 x MIC (Optional)

Connectivity: LAN 10/100Mbps. Wifi: 2.4GHz/5GHz IEEE 802.11 a/b/g/n/ac. Bluetooth 4.1, BLE

Keypad: 15 keys (10 numeric keys + 5 function keys); with tactile markings, backlit

NFC: Supports Type A&B card, MIFARE card; ISO/IEC 14443, qUICS, PayPass, payWave

I/O Ports: 1 x RJ45 LAN, 1 x Type-C (supports RS232, USB), 1 x Audio Jack, 1 x Kensington Lock Slot

Dimensions (LWH): 181.85 x 117.8 x 54.5 mm

Weight: 385g

Environmental: Operating Temperature: -10°C ~ 50°C. Storage Temperature: -20°C ~ 70°C

Expansion Slot: 1 x MicroSD (up to 32GB)

Ingress Protection: IP53

Security: PCI PTS 6.x
