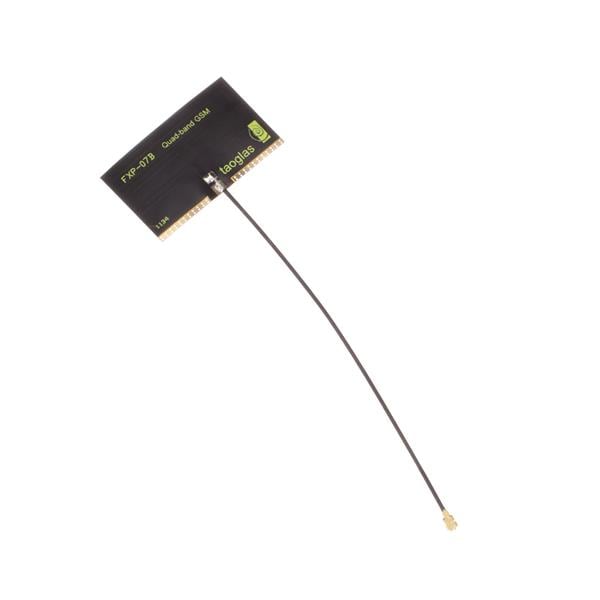

Taoglas FXP07.B.07.0100A Passive Antenna FXP07B 3G/2G Cellular Flexible PCB with solder pads, 100mm oe1.13, I-PEX MHF I

Gain: 0 dBi, 1 dBi, 1 dBi, 1 dBi, 1 dBi

Style: T-Pad Flex

Width: 24 mm

Length: 41 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: POS Devices

Cable Length: 100 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Electrical Type: Monopole

Number of Bands: 5 Band

Center Frequency: 868 MHz, 915 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Mechanical Style: PCB Trace

Ground Plane Size: 106 mm x 45 mm x 1 mm

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: IPEX MHF1

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS
