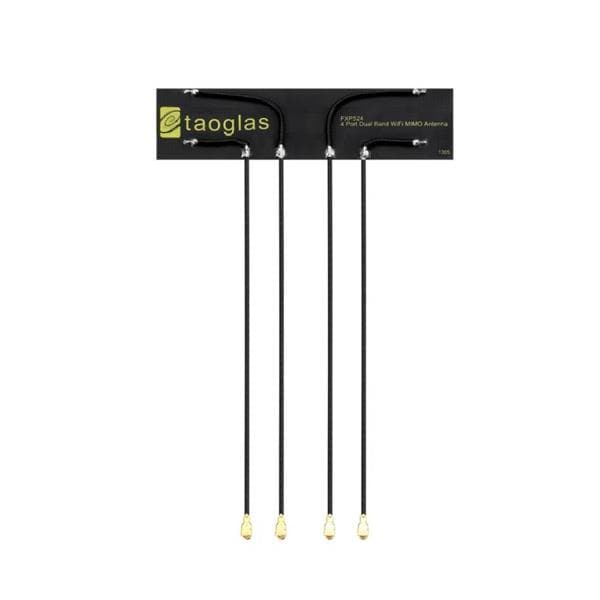

Taoglas FXP524.D.07.C.001 PCB Antennas FLEXIBLE PCB WIFI ANTENNA

Gain: 2.1 dBi, 3.9 dBi, 4.3 dBi

Style: T-Bar Flex

Width: 20 mm

Height: 0.2 mm

Length: 80 mm

Impedance: 50 Ohms

Cable Type: 1.37 mm Coax

Technology: 2.4/5GHz Dual Band MiMo

Application: Smart Home, Router, Gateway, Smart Device, HD Video Streaming

Cable Length: 100 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: MIMO

Number of Bands: 3 Band

Mechanical Style: PCB Trace

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: U.FL

Antenna Connector Type: U.FL

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
