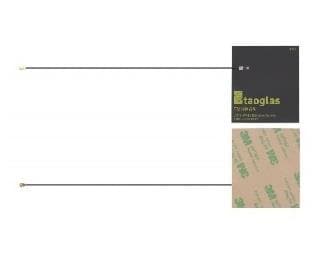

Taoglas FXUB68.07.0180C Passive Antenna Minima FXUB68 Flexible Wide Band Antenna, oe1.37mm

Gain: 2 dBi, 2 dBi, 2 dBi, 2 dBi, 2.5 dBi, 2.5 dBi, 3 dBi, 2 dBi

VSWR: 2.5, 2.5, 3, 2.5, 1.5, 1.5, 1.5, 2

Style: I-Pad Flex

Width: 58 mm

Height: 0.2 mm

Length: 67 mm

Impedance: 50 Ohms

Cable Type: 180 mm RF1.37

Application: Wide-band Application

Unit Weight: 2.410 g

Cable Length: 180 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2450 MHz, 2600 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.7 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
