Gain: 2.1 dBi, 2.4 dBi, 1.9 dBi, 1.8 dBi, 5.3 dBi, 5.6 dBi, 4.5 dBi

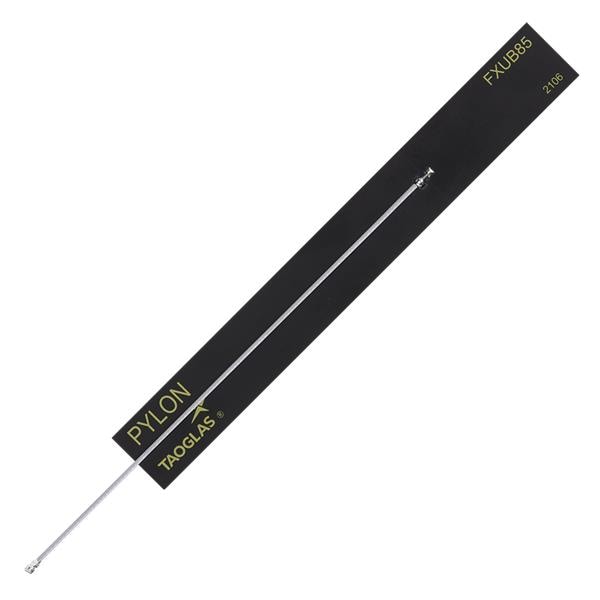

Style: I-Pad Flex
Width: 21 mm
Height: 0.3 mm
Length: 163 mm
Frequency: 600 MHz to 8 GHz
Impedance: 50 Ohms
Cable Type: 150 mm RF1.37
Application: IoT Devices, Connected Devices, UAVs, Autonomous Vehicles, Precision Tracking, Industrial Robotics, Factory Automation, Field Body Sensors, Wearables
Cable Length: 150 mm
Polarization: Linear
Power Rating: 5 W
Mounting Style: Adhesive Mount
Frequency Range: 600 MHz to 8 GHz
Number of Bands: 7 Band
Center Frequency: 657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5500 MHz, 5800 MHz, 6000 MHz, 6500 MHz
Mechanical Style: PCB Trace
Maximum Frequency: 8 GHz
Minimum Frequency: 600 MHz
Termination Style: Connector
Antenna Connector Type: I-PEX MHF 4L
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, GPRS
