Gain: 0.9 dBi, - 2.1 dBi, 0.8 dBi, - 0.8 dBi, 1.5 dBi, 1 dBi, - 1.3 dBi, 0.2 dBi

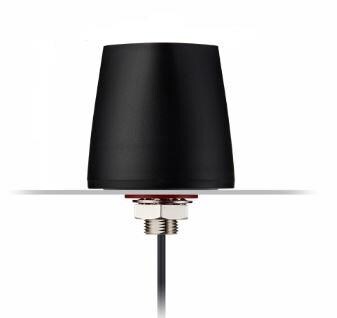

Style: Cone
Length: 48.5 mm
Diameter: 50.15 mm
IP Rating: IK10, IP67
Impedance: 50 Ohms
Cable Type: RG174
Application: Digital Signage, Gateways/Routers
Cable Length: 2 m
Polarization: Linear
Power Rating: 2 W
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Number of Bands: 7 Band
Center Frequency: 657 MHz, 700 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 3500 MHz, 4700 MHz
Mechanical Style: Module
Ground Plane Size: 30 cm x 30 cm
Maximum Frequency: 5 GHz
Minimum Frequency: 617 MHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, GPRS, HSPA
