Gain: 1.13 dBi, 0.8 dBi, 0.69 dBi, 0.37 dBi, 1.15 dBi, 1.32 dBi, 3.07 dBi

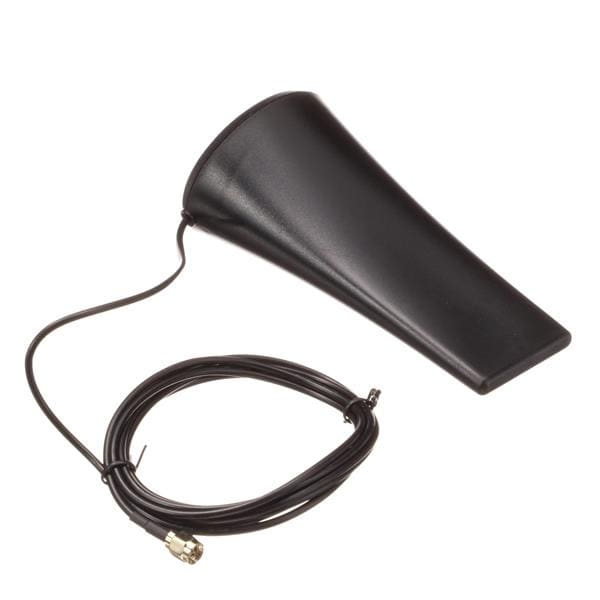

Style: Sharkfin
Width: 72 mm
Length: 143 mm
Diameter: 53 mm
IP Rating: IP65
Impedance: 50 Ohms
Cable Type: 2 M RG174
Application: Cellular Application
Unit Weight: 145 g
Cable Length: 2 m
Polarization: Linear
Power Rating: 10 W
REACH - SVHC: Details
Mounting Style: Magnetic Mount
Electrical Type: Dipole
Number of Bands: 7 Band
Center Frequency: 700 MHz, 750 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz
Mechanical Style: Module
Ground Plane Size: 50 cm x 50 cm
Maximum Frequency: 2.7 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS
