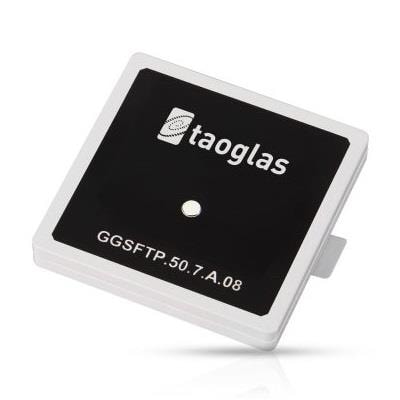

Taoglas GGSFTP.50.7.A.08 Passive Antenna GGSFTP.50.7.A.08 GPS L1,L2 Single Feed Stacked 50mm Terrablast Patch

Gain: 4.6 dBi, 2.6 dBi

Style: Stacked

Width: 50 mm

Height: 7 mm

Length: 50 mm

Impedance: 50 Ohms

Application: Transportation, Defense, Marine, Aviation, Agriculture, UAV Navigation, Surveying, Weather Forecasting, Tracking, Inventory Management

Unit Weight: 36.200 g

Polarization: RHCP

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 1.2276 GHz, 1.2788 GHz, 1.561 GHz, 1.57542 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.227 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
