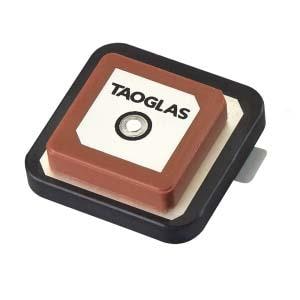

Taoglas HP2258.A Passive Antenna L1/L2 GNSS ANT

Gain: 1.4 dBi, 2.56 dBi, 3.08 dBi, 3.44 dBi

Width: 25 mm

Height: 8.12 mm

Length: 25 mm

Impedance: 50 Ohms

Application: Autonomous Vehicles, Navigation, Precision Agriculture, Security, Transportation, Wearables

Polarization: RHCP

Mounting Style: Adhesive Mount

Electrical Type: Patch

Number of Bands: 5 Band

Center Frequency: 1.227 GHz, 1.248 GHz, 1.561 GHz, 1.575 GHz, 1.602 GHz

Mechanical Style: Square

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.217 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
