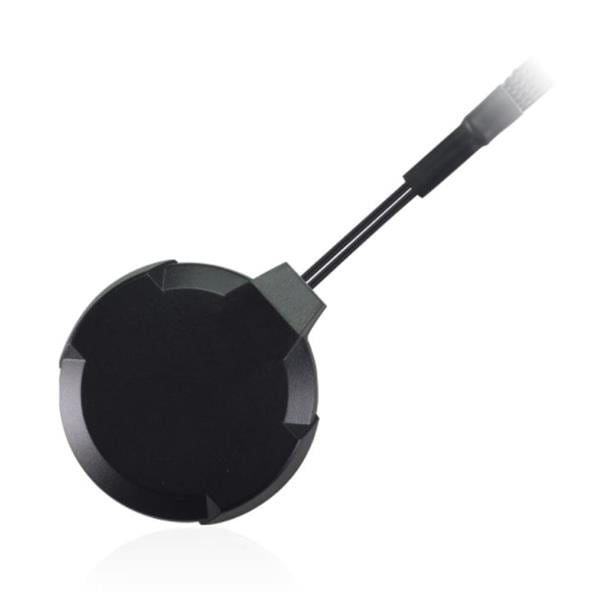

Taoglas MA210.K.CG.001 MIMO ADHESIVE MOUNT COMBO ANTENNA

Gain: 0.2 dBi, 0.6 dBi, 1.4 dBi, 1.4 dBi, 1.9 dBi, 0.2 dBi

Style: Puck

Width: 62.8 mm

Height: 12 mm

Length: 68 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 360 mm RG174, 2.64 M CFD200

Application: Wireless Applications

Cable Length: 360 mm, 2640 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 3 Band

Center Frequency: 2.45 GHz, 5.5 GHz, 6.5 GHz

Mechanical Style: Module

Maximum Frequency: 7.425 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiFi 6E

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
