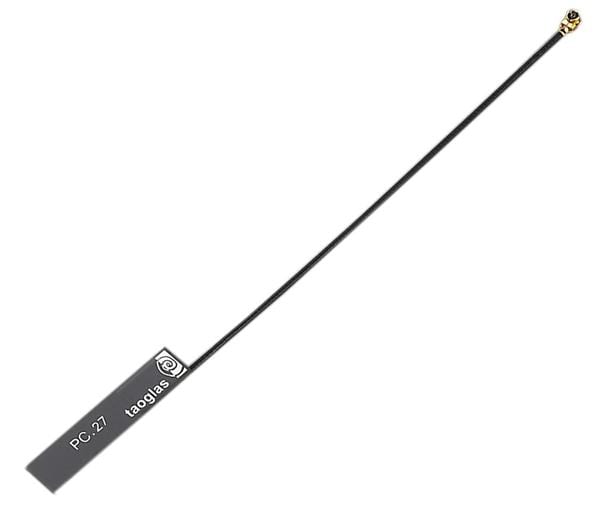

Taoglas PC27.07.0100A Passive Antenna PC27 2G Cellular Miniature FR4 PCB Antenna, I-PEX MHFIU.FL, 100mm oe1.13

Gain: - 4.1 dBi, - 13 dBi, 0.6 dBi, - 0.4 dBi

Style: I-Bar

Width: 7 mm

Height: 0.8 mm

Length: 34 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Technology: GSM

Application: Cellular Application

Unit Weight: 2.400 g

Cable Length: 100 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 1.99 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS
