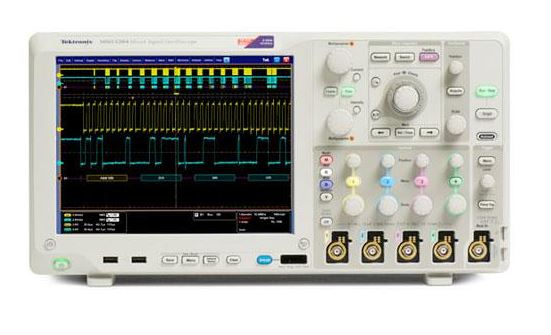

Accessories: 10x passive probe, Power cord, user manual, Documentation CD, 16-channel logic probe and accessory kit
Analog channels: 4
Digital channels: 16
Bandwidth: 2GHz
Rise time: 350ps
Sample rate: 5 GS/s (all channels)
10 GS/s (1 or 2 channels)
Record length: 25~125Mega
VERTICAL SYSTEM ANALOG CHANNELS
Input coupling: AC, DC
Input impedance: 1 MΩ ±1%, 50 Ω ±1%
Input sensitivity range: 1 MΩ: 1 mV/div ~ 10 V/div
50 Ω: 1 mV/div ~ 1 V/div
Vertical resolution: 8 bit
Maximum input voltage:1MΩ: 300Vrms CAT II with peaks ≤ ±425 V
50Ω: 5Vrms with peaks ≤ ±20 V
Accuracy: ±1.5%
Offset Range: 1mV/div ~ 10V/div
VERTICAL SYSTEM DIGITAL CHANNELS
Input Chanel: 16CH ( D15~D0)
Thresholds: Threshold per set of 8 channels
Threshold selections: TTL, ECL, User-defined
User-defined threshold range: ±40 V
Maximum input voltage: ±42 Vpeak
Threshold accuracy: ±[100 mV + 3% of threshold setting]
Minimum voltage swing: 400 mV
Probe loading: 100 kΩ in parallel with 3 pF
Vertical resolution: 1 bit
HORIZONTAL SYSTEM ANALOG CHANNELS
Seconds/division range: 12.5ps/div to 1000 s/div
Time-base delay time range: -10 divisions to 1000 s
Channel-to-channel deskew range: ±75 ns
Time base accuracy: ±5 ppm over any ≥1 ms interval
HORIZONTAL SYSTEM DIGITAL CHANNELS
Maximum sample rate (Main): 500 MS/s (2 ns resolution)
Maximum record length (Main): 25M points
Maximum sample rate (MagniVu): 16.5 GS/s (60.6 ps resolution)
Maximum record length (MagniVu): 10k points centered around the trigger
Minimum detectible pulse width 1.0 ns
TRIGGER
Trigger modes Auto, Normal, and Single
Trigger coupling DC, AC, HF reject (attenuates >50 kHz), LF reject (attenuates <50 khz="" noise="" reject="" reduces="" sensitivity="" br=""> Trigger holdoff range 250 ns to 8 s
Trigger sensitivity, typical
Edge type, DC coupled
Trigger types: Edge, Glitch, Runt, Width, Timeout, Transition, Setup/Hold, Pattern, Parallel Bus, State,...
WAVEFORM MATH
Arithmetic: Add, subtract, multiply, and divide waveforms, Integrate, Differentiate, FFT,log, min, max, sin cos tan...
DISPLAY SYSTEM
Display type: 10.4 in. (264 mm) liquid-crystal TFT color display
Display resolution: 1,024 horizontal × 768 vertical pixels (XGA)
Waveform styles: Vectors, dots, variable persistence, infinite persistence
Color palettes: Normal, green, gray, temperature, spectral, and user defined
Display format: YT, XY
INPUT/OUTPUT PORTS
USB 2.0 high-speed host port Supports USB mass storage devices and keyboard. Two ports on front and two ports on rear of instrument.
USB 1.1; USBTMC or GPIB (with a TEK-USB-488 adapter)
LAN port; Video out port; DB-15 female connector
Audio ports Miniature phono jacks
Keyboard port: PS/2 compatible
Mouse port: PS/2 compatible
Auxiliary input; Auxiliary out
Trigger Out; Time Base Reference Out
POWER SOURCE
Power source:100 to 240 V ±10%, 45 ~66Hz, 275W max
Dimensions: 233mm x 439mm x 206mm
Weight: 6.7Kg
