Attenuation (probe only): 10X ±2%
Typical characteristics
Bandwidth (probe only): ≥1.5 GHz
Rise time (probe only): <267 ps
Input capacitance: <1 pF
Input resistance: 1 MΩ
Linearity: ±8 V (16 Vp-p)
Input offset range: ±10 V
Maximum non-destructive input voltage: ±15 V (DC + peak AC)
Propagation delay: 5.3 ns (TAP1500)/28.9 ns (TAP1500L)
EMC, environment, and safety
Temperature Operating: 0 °C to +50 ° (+32 °F to 122 °F)
Nonoperating: -40 ° C to +71 °C (-40 °F to 160 °F)
Humidity Operating:
5% to 95% Relative Humidity up to +30 °C (+86 °F)
5% to 85% Relative Humidity at 30 °C to +50 °C (+86 °F to +122 °F) noncondensing
Nonoperating
5% to 95% Relative Humidity up to +30 °C (+86 °F)
5% to 85% Relative Humidity at 30 °C to +75 °C (+86 °F to +167 °F) noncondensing
Altitude Operating: Up to 4,400 m (14,436 ft)
Nonoperating: Up to 12,192 m (40,000 ft)
Physical characteristics
Probe head size
Height: 4.83 mm (0.19 in)
Width: 7.87.1 mm (0.31 in)
Length: 59.18 mm (2.30 in)

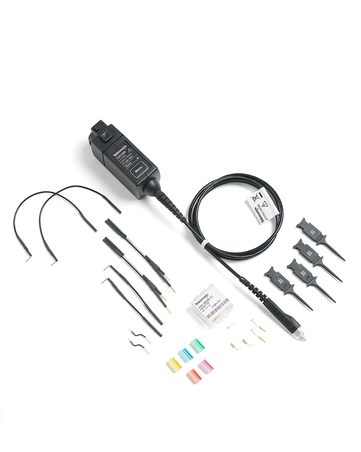

Include: TAP1500 R5
