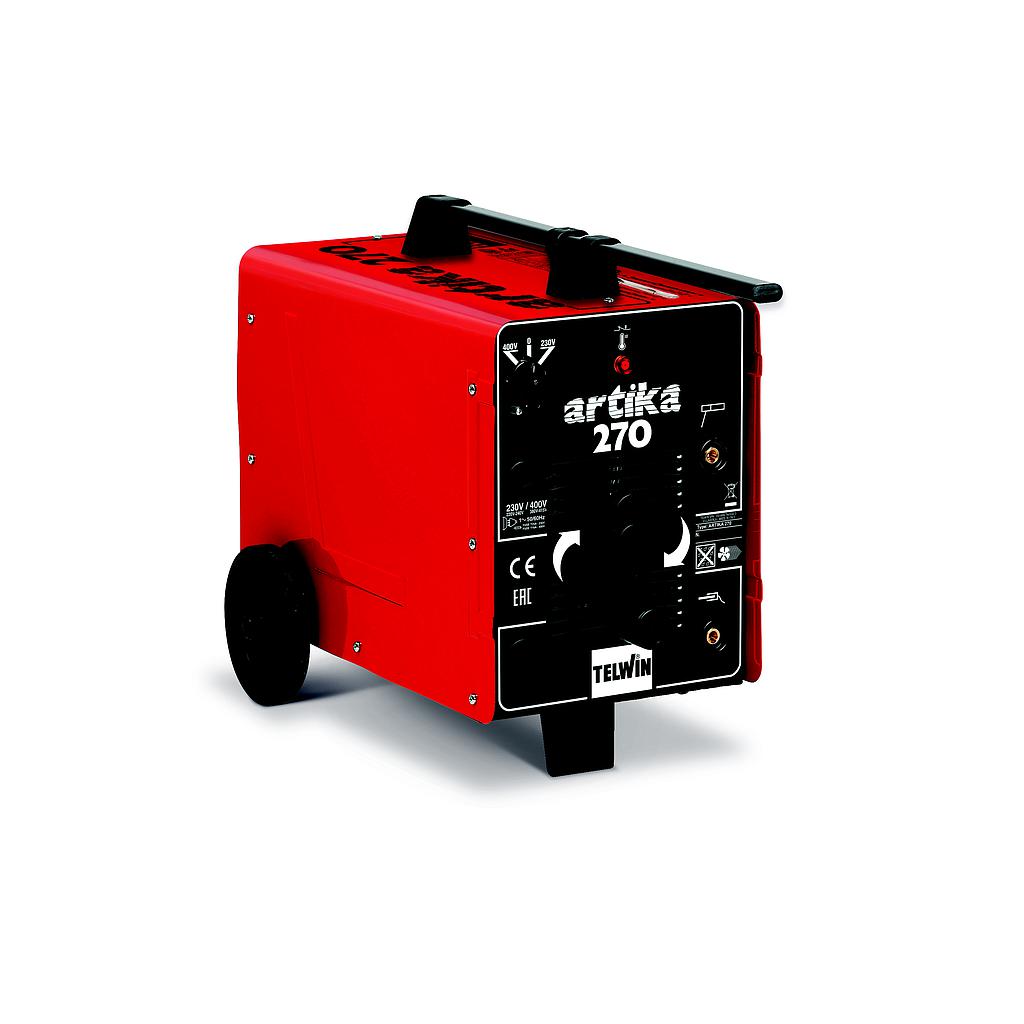

Telwin ARTIKA 270 MMA ELETTROMECC. 1PH (2 - 5 mm)

AC CURRENT: 70 A

PROTECTION DEGREE: IP21

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX NO LOAD VOLTAGE: 55 V

DIMENSIONS: 75 x 36 x 49 cm

DOUBLE PHASE MAINS VOLTAGE: 400 V

MAX ABSORBED POWER: 8,5 kW

WEIGHT: 25 kg

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 2,6 kW

CURRENT RANGE :70 - 250 A

POWER FACTOR (cosphi): 0,55

PIECES/PALLET: 12 pz/pallet

MAX CURRENT (EN 60974-1): 200 @ 10% A

D. USABLE ELECTRODES IN AC: 2 - 5 mm
