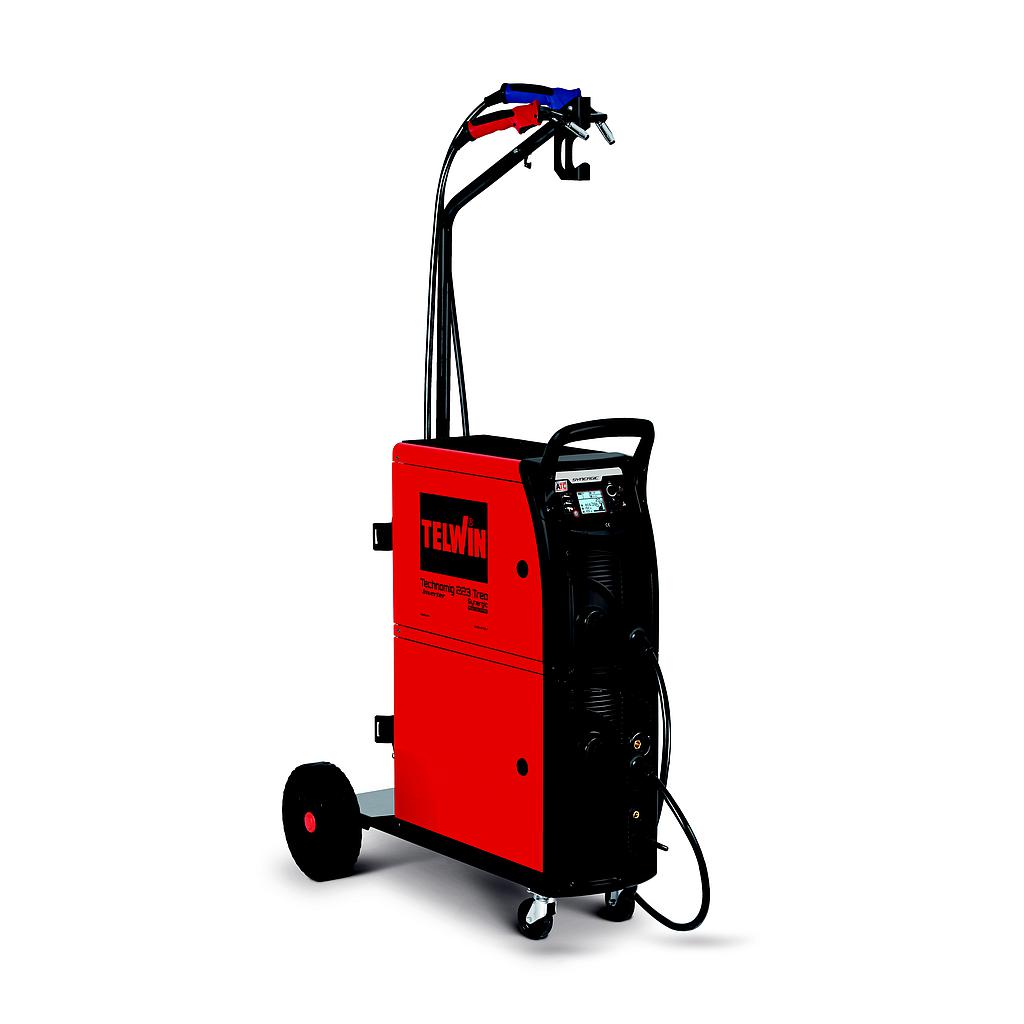

Telwin TECHNOMIG 223 TREO SYNERGIC MIG-MAG 1PH (1,6 - 4 mm)

MAX ABSORBED CURRENT: 32 A

D. USABLE ELECTRODES IN DC: 1,6 - 4 mm

SINGLE PHASE MAINS VOLTAGE: 230 V

ABSORBED CURRENT AT 60% - MAX 15 A

STEEL WELDING WIRE DIAMETER: 0,6 - 1 mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 5 kW

INOX WELDING WIRE DIAMETER: 0,8 - 1mm

CURRENT RANGE: 20 - 220 A

ABSORBED POWER AT 60% 2,2 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1 mm

MAX CURRENT DC (EN 60974-1): 180 @20% A

EFFICIENCY: 84 V

FLUX CORED WELDING WIRE DIAM.: 0,8- 1,2 mm

DC CURRENT: 100 A

POWER FACTOR (cosphi): 0,7

BRAZING WIRE DIAM.: 0,8 - 1 mm

MAX NO LOAD VOLTAGE: 78 V

Included Accessories

CABLE 25 MMQ 3 M PLUG ATLAS 25 - 124466

FEED ROLL 2R 0,6FE-0,8FE "F" - 742575

TOLEDO 250 WORK CLAMP 250A - 712030

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576

MT15 MIG TORCH 3M (RED) - 742180

MT15 MIG TORCH 3M (BLUE) - 74294
