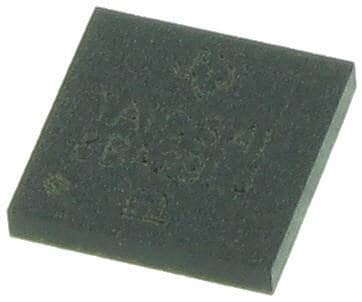

Texas Instruments TLV320AIC34IZAS Audio CODEC, Low Power Low-Pwr 4-channel CO DEC A 595-TLV320AIC34IZASR

Width: 6 mm

Height: 0.64 mm

Length: 6 mm

Resolution: 24 bit

Unit Weight: 77.500 mg

Output Power: 500 mW

Interface Type: Serial (I2C)

Mounting Style: SMD/SMT

Number of ADCs: 4 ADC

Number of DACs: 4 DAC

Conversion Rate: 96 kHz

Development Kit: TLV320AIC34EVM-K

Moisture Sensitive: Yes

Number of ADC Inputs: 12 Input

Supply Voltage - Max: 1.95 V, 3.6 V

Supply Voltage - Min: 1.85 V, 3 V

Number of DAC Outputs: 8 Output

Operating Supply Voltage: 2.4 V to 3.6 V, 1.525 V to 1.95 V

SNR - Signal to Noise Ratio: 92 dB ADC/102 dB DAC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
