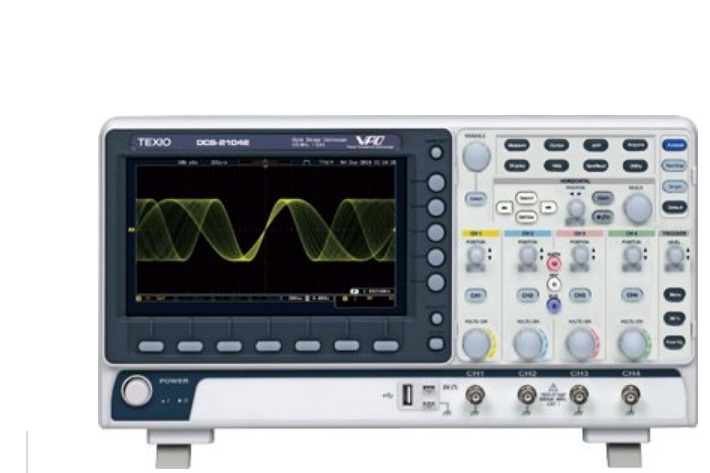

Model: DCS-2204E
Warranty: 12 months
Manufacture: Texio
Channels DCS-2xx4E : 4ch , DCS-2XX2E : 2ch+EXT
Bandwidth DC ～ 70MHz DC ～ 100MHz DC ～ 200MHz
Resolution 8 bits : 1mV~10V
Input Impedance 1MΩ // 16pF
DC Gain Accuracy 1mV: ±5% full scale, >2mV: ±3% full scale
Waveform Signal Process +, -, ×, ÷, FFT, FFTrms, User Dened Expression
FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT
Window to Rectangular, Hamming, Hanning, or Blackman-Harris
Trigger
Source CH1, CH2, CH3*, CH4*, Line, EXT**
*four channel models only. **two channel models only.
Trigger Type Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Timeout, Alternate,
Event-Delay(1~65535 events), Time-Delay(Duration, 4nS~10S), Bus
Coupling AC, DC, LF rej., Hf rej., Noise rej.
Sensitivity 1div
External Trigger
Range ±15V
Sensitivity DC ~ 100MHz Approx. 100mV 100MHz ~ 200MHz Approx. 150mV
Horizontal
Time base Range 1ns/div ~ 100s/div (1-2-5 increments) ROLL: 100ms/div ~ 100s/div
Pre-trigger 10 div maximum
Post-trigger 2,000,000 div maximum.
Real Time Sample Rate 1GSa/s max.
Record Length Max. 10Mpts
Acquisition Mode Normal, Average, Peak Detect, Single
Peak Detection 2nS (typical)
Average selectable from 2 to 256
X-Y Mode
X-Axis Input Channel 1; Channel 3* *four channel models only
Y-Axis Input Channel 2; Channel 4* *four channel models only
Phase Shift ±3° at 100kHz
Cursors and Measurement
Cursors Amplitude, Time, Gating available; Unit: Seconds(s), Hz(1/s), Phase(degree), Ration(%)
Automatic Measurement 36 sets: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS,
Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period,
RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, FRR,
FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase
Control Panel Function
Autoset Single-button, automatic setup of all channels for vertical, horizontal and trigger
systems, with undo Autoset
Save Setup 20set
Save Waveform 24set
Display
TFT LCD Type 8”TFT WVGA color display 800 horizontal × 480 vertical pixels (WVGA)
Waveform Update Rate 120,000 waveforms per second, maximum
Interface
USB Port USB 2.0 High-speed host port X1, USB High-speed 2.0 device port X1
Ethernet Port (LAN) RJ-45 connector, 10/100Mbps with HP Auto-MDIX (4ch Model Only)
General
Dimensions 384mmX208mmX127.3mm
Weight 2.8kg
Power Source 100V~240V AC, 48Hz~63Hz, Auto selection, Power consumption
