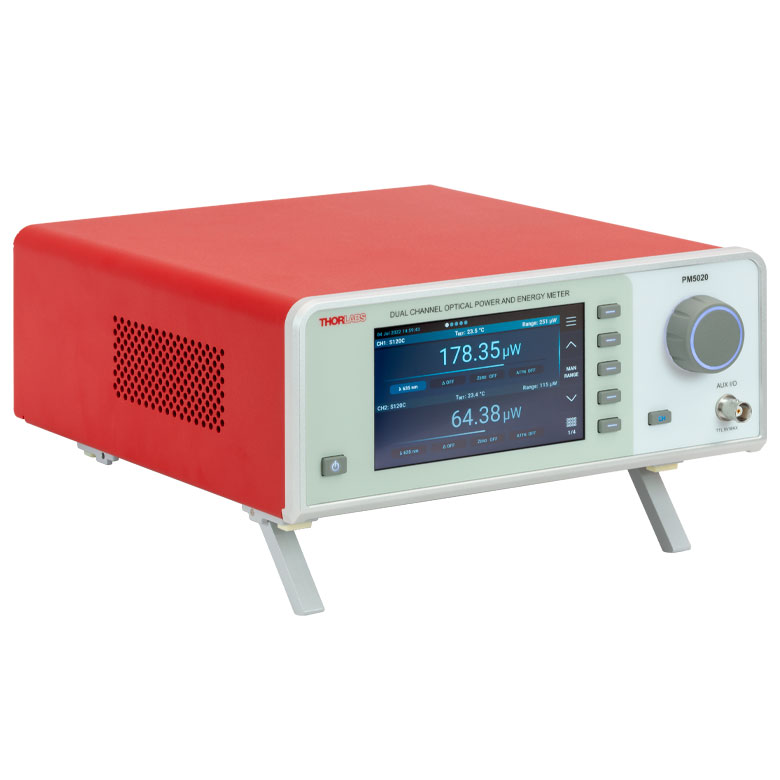

THORLABS PM5020 Dual-Channel Benchtop Optical Power and Energy Meter Console

Compatible Sensors: Photodiode Power, Thermal Power, Thermal Position and Power, and Pyroelectric Energy

Number of Channels: 2

Optical Power Range(b): 100 pW to 200 W

Optical Energy Range(b): 10 µJ to 15 J

Available Sensor Wavelength Range(b): 185 nm - 25 μm

Display Refresh Rate: 25 Hz

Bandwidth(a): DC - 250 kHz

Photodiode Sensor Measurement Range(b,c): 2 nA - 10 mA

Thermopile Sensor Measurement Range(b,c): 2 mV - 1 V

Pyroelectric Sensor Measurement Range(b,c): 20 mV - 100 V

(a) See the Manual for complete specifications.

(b) Sensor Dependent

(c) Ranges Selectable in Watts (Photodiode and Thermopile) or Joules (Pyroelectric)
