Test Item: Total double flank meshing error & error size
Test Gear: Spur Gears w ith a hole of shaft
Module Range: M0.5 ~ 7.0
Center Distance: 60 ~ 130mm
Measuring Pressure: Max 1kg
Spindle Driving Speed: Stepless Variable
Floating Side Maximum Load: 10kg
Fix Side Maximum Load: 20kg
Measurement Magnification: x10, x200......x1000
Control Axis: 2-Axis NC (BB1)
Recording Output: Printer (A4 size paper)
Optional Scale: 0.02 micron / pulse (Built in)
Weight: Approx. 110kg
Power Supply: Single phase AC 100V 50~60Hz 3Amp.
CHARACTERISTICS
DIMENSIONS

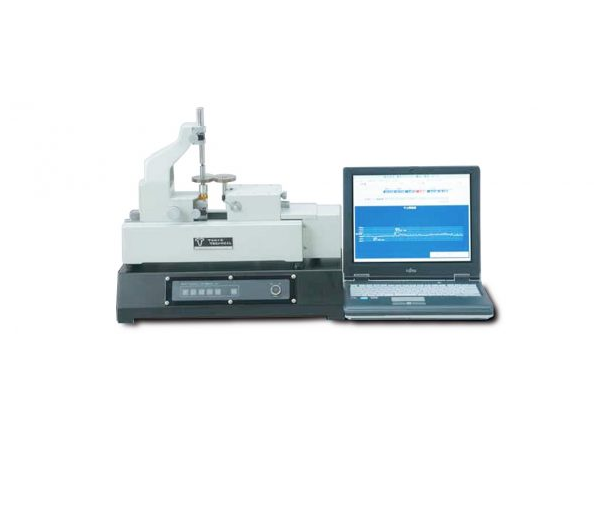

The TF-40NC is designed to test the mesh of small gears accurately and efficiently, which are used in almost every industry such as clocks, cameras, compact machine tools and electronic equipment.
The TF-40NC has dratically improved stability, work efficiency, and measurement accuracy with its world’s first CNC double flank gear rolling testing mechanism.
FEATURES:
Tester, calibrated by automatic calibration function, does not need to be re-adjusted for zero-point before each measurement.
The size management program displays the average, minimum center distance and maximum center distance.
Automatically compensates for the runout of the master gear.
