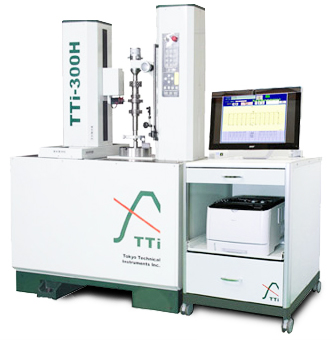

TOKYO TECHNICAL INSTRUMENTS (TTi) TTi-120E CNC Gear Measuring Instruments (M0.2 ~ 4.0, Ø120)

Measuring system: Electronic generating DDC loop system

Measurement module: M0.2~4.0

Base circle diameter: Ø120 (outer diameter130)

Helix angle: ±65º (90º)

Gear width: 200mm max

Gear length: 10 ~ 260mm

Permissible gear weight: 20 kg max

Drive system: Constant-current drive

Weight: 650kg

Power supply: Single phase AC 100V 50/60Hz 6A

Measurement accuracy: 0.1µm

Width (mm): 700

Depth (mm): 500

Height (mm): 1470

A (mm): 400

B (mm): 400

CHARACTERISTICS

The consummate manufacturing technique of Tokyo Technical Instruments(TTI) provides the diagraph equipments of the precision for you, the designer owns abundant wheel gear test experience, the product technique function is incomparable, testing various wheel gear of the realm containment, testing the process realization to make to move to turn completely, the high speed turns

The full-automatic wheel gear measuring instrument, adopting to synthesize the DDC electronics circulatory system creatively, the simple operation can immediately carry out the fast test with high accuracy; the machine of the high strength designs, raising the stability of the test process; match with the profession test software, thus monitoring it in brief convenient, the data is more accurate to pretend to fulfill.
