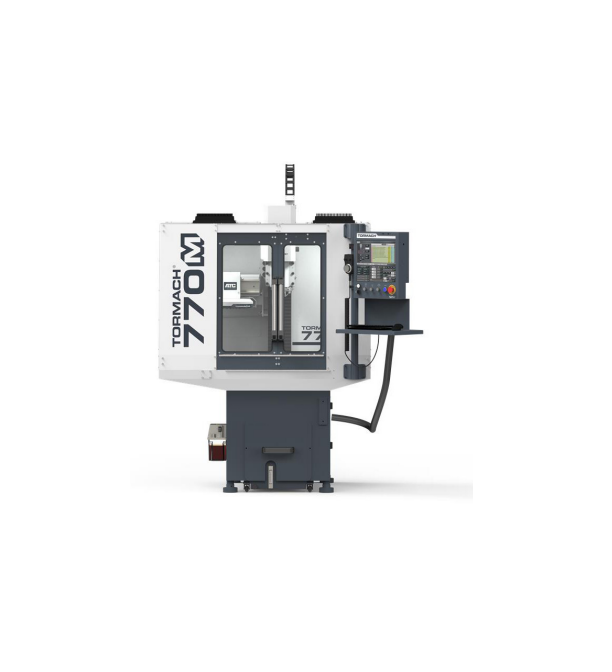

Tormach 770M CNC Milling Machine

Travels

X-Axis: 14 in. (356 mm)

Y-Axis: 7.5 in. (191 mm)

Z-Axis: 13.25 in. (337 mm)

Spindle

Spindle Power: 1.5 hp (1.12 kW)

Maximum Speed: 10,000 rpm

Transmission: Poly-V Belt

Spindle Taper: R8

Threading: Tension/Compression, Auto-Reversing, Thread Milling

Maximum Feed Rate

X- and Y-Axis: 135 IPM (3.43 m/min)

Z-Axis: 110 IPM

Axis Motor

Stepper Driven

Power

Power Required: Single-Phase 115VAC, 50/60Hz, 15A breaker

Machine Specifications

Table Size: 26 in. × 8 in. (660 mm × 203 mm)

Table Slots: 5/8 in. (15.9 mm), 3 slots

Spindle Nose to Table Max Clearance: 14.25 in. (362 mm)

Spindle Centerline to Machine Column: 8.6 in. (218 mm)

Machine Size: 56 in. × 48.5 in. (1.4 m × 1.2 m)

Overall System Height: 88 in. (2.2 m)

Typical System Weight (Factory Assembled): 1500 lbs. (680 kg)
