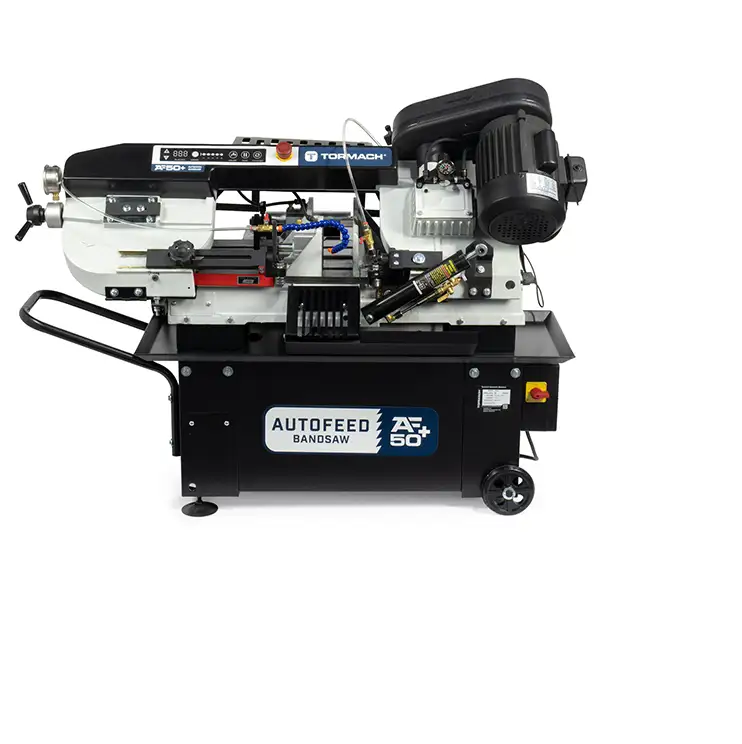

Tormach AF50+ Autofeed Bandsaw

Capacity

Cut Lengths: 0.157 in. to 50 in. (4 mm to 1270 mm)

Max Material Weight: 250 lbs

Material Remnant Length: 10 in.

Maximum Parts per Program: 999

Rectangular Stock Capacity: 6 in. tall × 8 in. wide (152 mm × 203 mm)

Round Stock Capacity: 7 in. (178 mm) diameter

Blade

Motor Power: 1 hp (3/4 kW)

Blade Speeds (60 Hz): 90, 134, 195, 255 ft/min (27, 41, 59, 78 m/min)

Blade Speeds (50 Hz): 70, 110, 160, 210 ft/min (22, 34, 49, 64 m/min)

Blade Length: 93 in. (2362 mm)

Blade Width: 0.75 in. (19 mm)

Blade Thickness: 0.035 in. (0.9 mm)

Machine Requirements

Minimum Width: 60 in. (1.53 m)

Minimum Depth: 36 in. (0.91 m) plus the length of stock

Minimum Height: 67 in. (1.71 m)

Power: Single-Phase 115 VAC, 15A breaker, meets Canadian and U.S. safety/electrical standards

Compressed Air Source: 90 psi to 120 psi (620 kPa to 827 kPa)

Features

Pneumatic Clamping System

Hydraulic Feed Control

Integrated Coolant System: 2.65 gal (10 L) capacity

Movable Design

Blade Tension Indicator for fast and easy tension adjustment after blade changes
