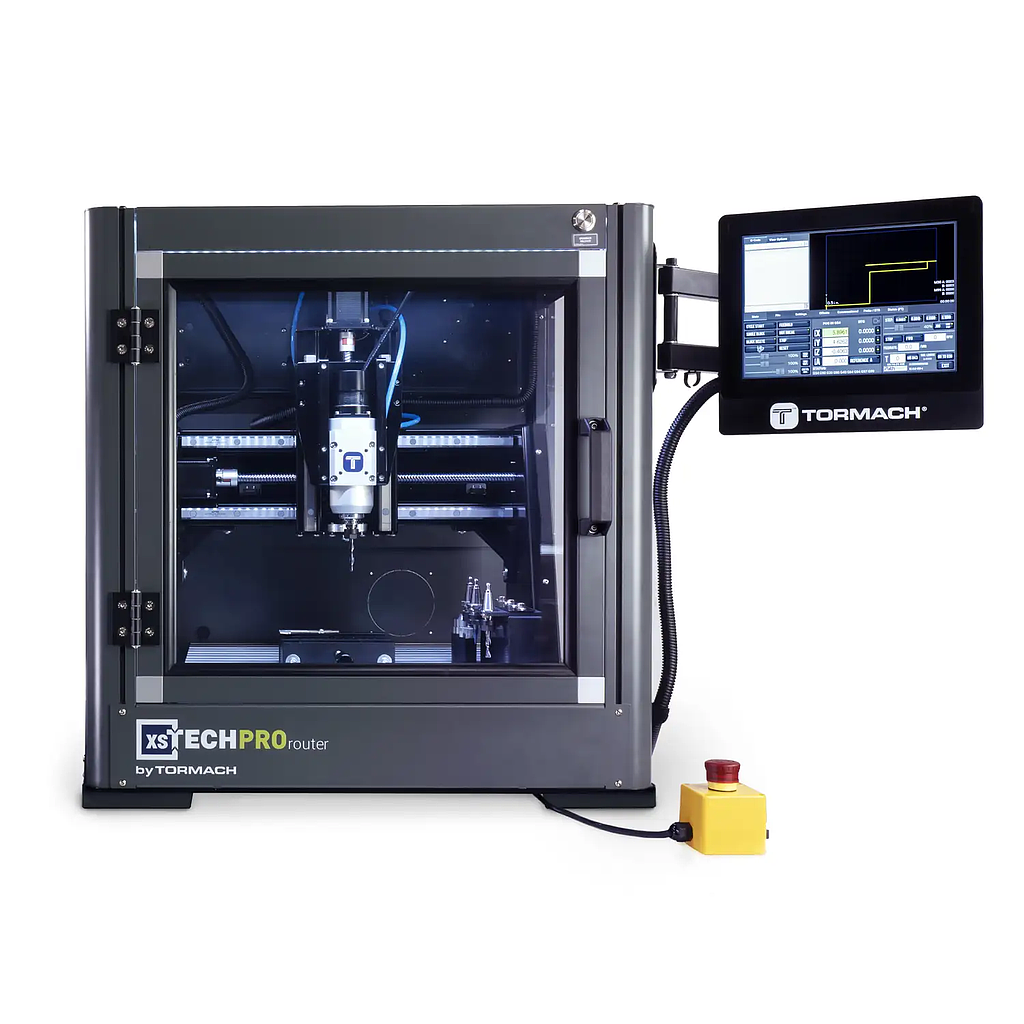

Tormach xsTECH CNC Router

Travels: X-Axis: 8.6 in. (220 mm); Y-Axis: 6.3 in. (160 mm); Z-Axis: 2.4 in. (61 mm)

Spindle Power: 120 W (0.12 kW), Brushless DC

Maximum Speed: 20,000 RPM

Spindle Taper: ER11

Noise Level (No Load Operation): < 66 dB(A)

Repositioning Accuracy: 0.004 in. (0.10 mm)

Safety Certifications: Starting in 2026, xsTECH machines are UL certified and include a UL certification mark on the back of the unit

Power Required: Single-Phase, 50-60 Hz; 120 VAC (USA/Canada, PN 39177); 230 VAC (International, PN 50614)

Table Size: 12.6 in. × 5.9 in. (320 mm × 150 mm)

System Footprint: 15.4 in. × 15.7 in. (391 mm × 399 mm)

Overall System Height: 16.7 in. (424 mm)

System Weight: 33 lb (14.9 kg)

Maximum Table Load Weight: 6.6 lb (3 kg)

Datasheet
