Capacity: Up to 31 bundles/minute
Bundle Size WxHxL
max 450x500x400 mm
min 120x210x10 mm
Bundle Weight: max 25 kg
Strap Width: 5 mm, 6 mm, or 9 mm
Tension Range: 1 - 32 kg
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Pneumatic Source: 6 bar
Air Consumption: 8.53 liter/cycle
Weight: 475 Kg
Options
Energy saving transit with auto sleep mode
Light tower with low strap sensor (triple lamp)
Lower adjustable table height with movable casters (730 mm - 830 mm)
Reverse bundle flow
Low volume bundle bypass
Movable casters (picture shown with this option)
Adjustable side guides
Lever switch for bundle with wrapping
Datasheet

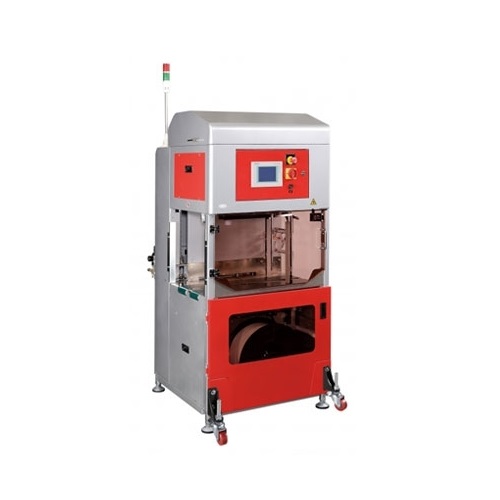

TP-702NL is a fully automatic longitudinal strapping machine. The bundle is strapped in the transport direction.
Features
Robust & compact mechanical strapping head
Automatic self-adjusting strap chute (patents registered)
Automatic tension control for various bundle dimensions (patents registered)
Up and down stream interlock with complete plug connection
Fully automatic operation with variable conveyor speed
Siemens PLC and touch panel
Free access to strap guides (patents registered)
Easy access to strapping head (patents registered)
Strap end ejector
Adjustable table height between 800 mm and 900 mm
Auto strap ejector
